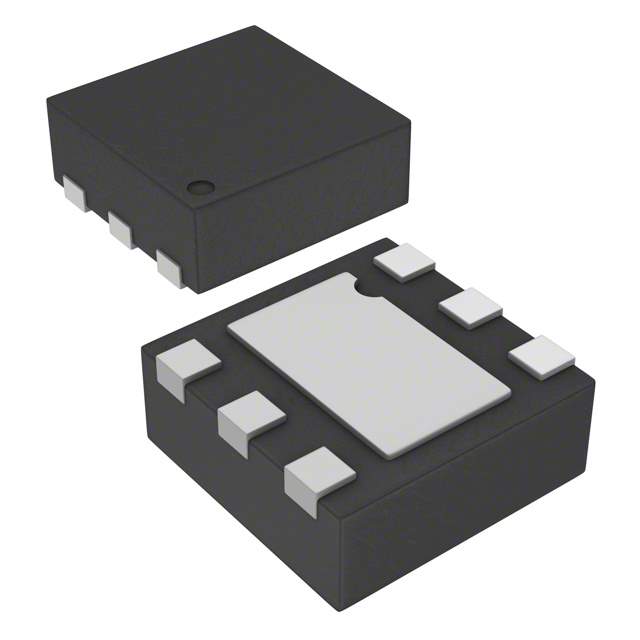

RT9011-CSGQWC Real Image
Same model may have multiple batches, images only for reference.

RT9011-CSGQWC

Part No RT9011-CSGQWC
Manufacturer Richtek USA Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 1.2V/3.3V 0.3A 6WDFN
Datasheet
RT9011-CSGQWC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Richtek USA Inc.
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 2
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 1.2V, 3.3V
Dropout Voltage-Max 0.33V @ 300mA, 0.33V @ 300mA
Output Current 300mA, 300mA
Operating Supply Current 80μA
PSRR 70dB to 38dB (100Hz to 300kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 1.2V, 3.3V
Voltage - Dropout (Typical) 0.24V @ 300mA
Mounting SMD (SMT)
Case / Package 6-WDFN (1.6x1.6)
Win Source Part Number 062626-RT9011-CSGQWC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RT9011-CSGQWC CAD Model

Description

The Richtek USA Inc. RT9011-CSGQWC is an integrated circuit designed for use in a variety of applications.

  • Topology: Positive fixed regulator
  • Number of Regulators: 2
  • Protection Features: Over current, over temperature, and short circuit protection
  • Ideal for: Wide range of applications
  • Package: Reel - TR
  • Mounting Type: SMD (SMT)
