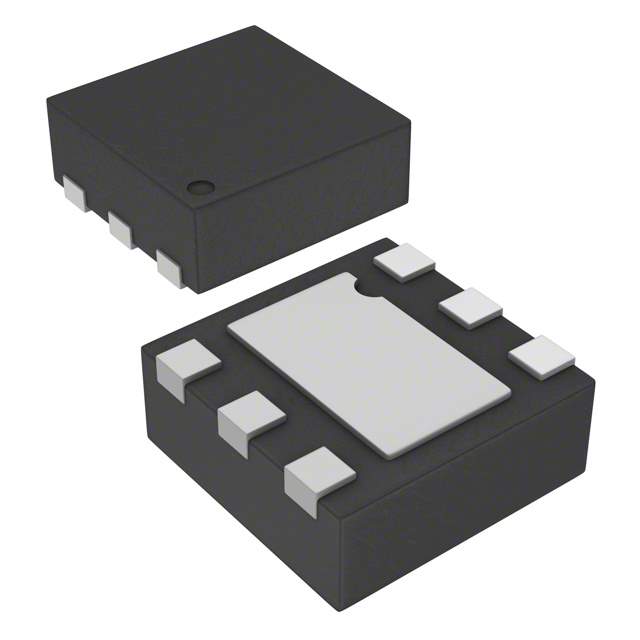

Same model may have multiple batches, images only for reference.

RT9011-MNGQWC

Name: RT9011-MNGQWC
Brand: Richtek USA Inc.
SKU: 300583
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RT9011-MNGQWC
Manufacturer	Richtek USA Inc.
Catalog	PMIC - Voltage Regulators - Linear
Description	IC REG LDO 2.8V/2.85V 0.3A 6WDFN
Datasheet	RT9011-MNGQWC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Richtek USA Inc.
Packaging	Reel - TR
Status	Active
Output Type	Fixed
Number of Regulators	2
Maximum Input Voltage	5.5V
Nominal Output Voltage (Min/Fixed)	2.8V, 2.85V
Dropout Voltage-Max	0.33V @ 300mA, 0.33V @ 300mA
Output Current	300mA, 300mA
Operating Supply Current	80μA
PSRR	70dB to 38dB (100Hz to 300kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Temperature Range - Operating	-40°C to 85°C
Regulator Topology	Positive Fixed
Output Voltage	2.8V, 2.85V
Voltage - Dropout (Typical)	0.24V @ 300mA
Mounting	SMD (SMT)
Case / Package	6-WDFN (1.6x1.6)
Win Source Part Number	062636-RT9011-MNGQWC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian RT9011-MNGQWC CAD Model

Alternative Products

Description

The RT9011-MNGQWC is a positive fixed regulator topology IC manufactured by Richtek USA Inc.

Outputs: two fixed outputs of 2.8V and 2.85V
Output Current: maximum output current of 300mA
Dropout Voltage: 0.24V @ 300mA
Operating Temperature Range: -40°C to 85°C
Package: 6-WDFN (1.6x1.6)
Maximum Input Voltage: 5.5V
