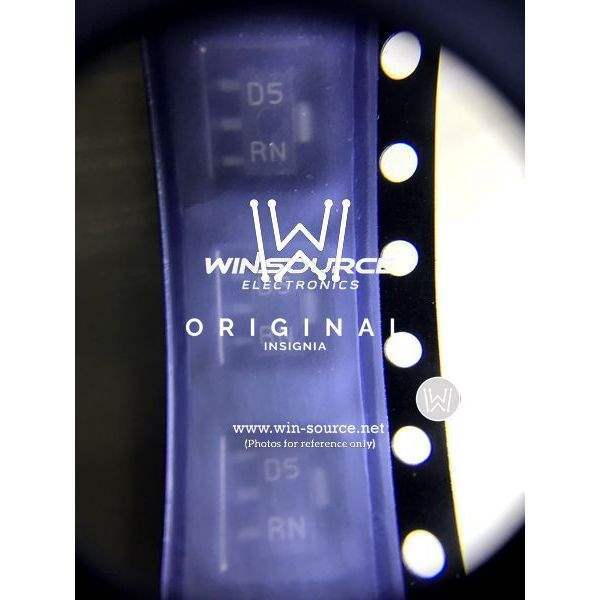

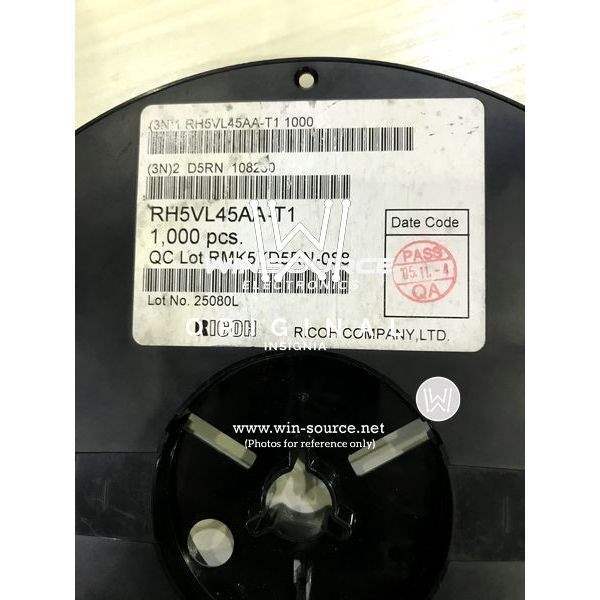

The Ricoh RH5VL45AA-T1 is a voltage detector IC designed for accurate voltage monitoring in a variety of electronic applications. It is part of Ricoh's extensive line of voltage detectors, known for their reliability and precision.

Applications

• Microcontroller Reset Circuits: Used to ensure proper microcontroller operation by resetting the device when the voltage drops below a safe level.
• Power Supply Monitoring: Provides a reliable method for monitoring the voltage of power supplies and signaling when under-voltage conditions occur.
• Battery-Powered Devices: Extends battery life by preventing deep discharge and ensuring stable operation even as the battery voltage decreases.
• Memory Backup Systems: Protects data integrity by initiating backup procedures when the main power supply fails.
• Industrial Control Systems: Monitors voltage levels in critical control circuits, preventing malfunctions and ensuring system stability.

Features

• High-Precision Detection Voltage: Offers a precise detection voltage of 4.5V, ensuring accurate voltage monitoring.
• Low Current Consumption: Minimizes power consumption, making it suitable for battery-powered and energy-efficient applications.
• Open Drain Output: Provides flexibility in circuit design and allows for easy interfacing with other components.
• Small Package Size: Available in a compact package, allowing for space-saving designs.
• Wide Operating Temperature Range: Functions reliably over a broad temperature range, making it suitable for diverse environments.

Benefits

• Enhanced System Reliability: Prevents system malfunctions due to voltage fluctuations, ensuring stable and reliable operation.
• Extended Battery Life: Minimizes power consumption, extending the operational life of battery-powered devices.
• Simplified Circuit Design: Simplifies circuit design with its open-drain output and compact package.
• Accurate Voltage Monitoring: Provides accurate and reliable voltage detection, ensuring optimal performance.
• Cost-Effective Solution: Offers a cost-effective solution for voltage monitoring in various applications.

Additional Details

The RH5VL45AA-T1 typically includes a built-in hysteresis to prevent output chattering during voltage fluctuations near the detection threshold. The open-drain output requires a pull-up resistor. The specific operating temperature range and other detailed specifications can be found in the manufacturer's datasheet.
