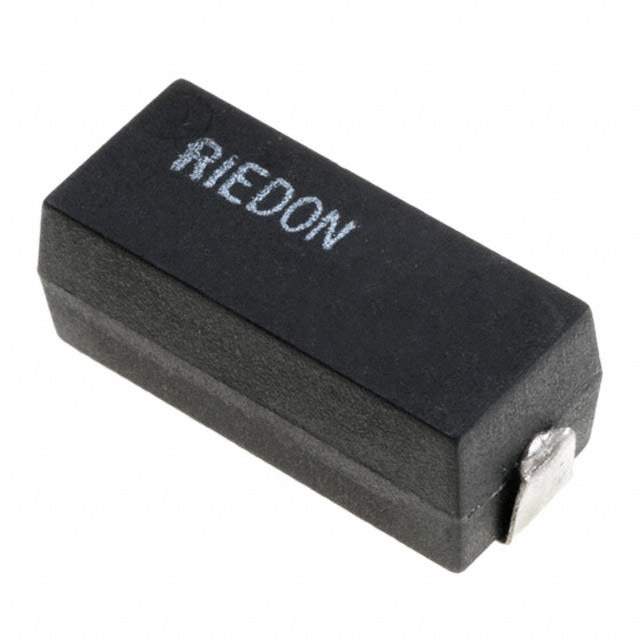

S2-22RF2 Real Image
Same model may have multiple batches, images only for reference.

S2-22RF2

Part No S2-22RF2
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 22 OHM 1% 1W 2615 / 22 Ohms ±1% 1W Chip Resistor 2615 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S2-22RF2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel
Resistance 22 Ohms
Tolerance ±1%
Power (Watts) 1W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 2615 J-Lead
Dimension 0.260" L x 0.154" W (6.60mm x 3.90mm)
Height - Seated (Max) 0.142" (3.60mm)
Number of Terminations 2
Other Names 696-1207-2,S-2-22FTR,696-1207-1,S-2-22FTR,S-2-22FDKR,S-2-22FCT,S-2-22FCT,696-1207-6,S222OHM1,S-2-22FDKR
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237208-S2-22RF2
Ultra Librarian 3D Model Ultra Librarian S2-22RF2 CAD Model

Description

The Riedon S series resistor is a wirewound composition resistor that is current sense, flame proof, moisture resistant, pulse withstanding, and safe to use.

  • Tolerance: ±1%
  • Power Rating: 1W
  • Packaging: Tape and Reel
  • Terminations: 2
  • Temperature Range: -55°C to 275°C
  • Resistance: 22 Ohms
  • Dimensions: 0.260" L x 0.154" W (6.60mm x 3.90mm)
  • Height - Seated (Max): 0.142" (3.60mm)
  • Standard Package: 600
  • Made in: Germany
  • REACH: Affected
  • HTSUS: 8533.21.0080
  • Series: S series
  • Composition: Wirewound
  • Features: Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safe
  • Manufacturer: Riedon
