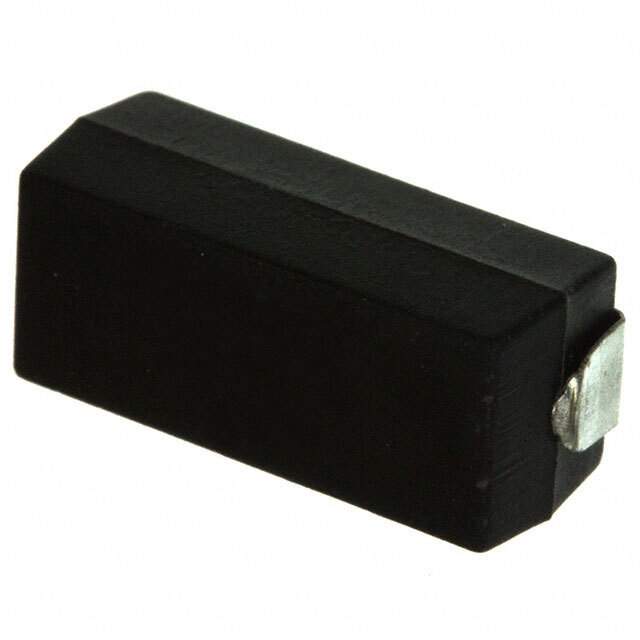

Same model may have multiple batches, images only for reference.

S3-0R015F1

Name: S3-0R015F1
Brand: Riedon
SKU: 1237190
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	S3-0R015F1
Manufacturer	Riedon
Catalog	Chip Resistor - Surface Mount
Description	RES 0.015 OHM 1% 3W 6327 / 15 mOhms ±1% 3W Chip Resistor 6327 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet	S3-0R015F1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Riedon
Series	S
Package	Tape & Reel (TR)
Resistance	15 mOhms
Tolerance	±1%
Power (Watts)	3W
Composition	Wirewound
Features	Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Range - Operating	-55°C ~ 275°C
Package / Case	6327 J-Lead
Dimension	0.626" L x 0.272" W (15.90mm x 6.90mm)
Height - Seated (Max)	0.268" (6.80mm)
Number of Terminations	2
Other Names	S-3-0.015FDKR,S-3 0.015 OHM 1%,S-3-0.015FTR,S30R015F1,S3-0R015F1TR,S3-0R015F1DKR,S-3-0.015FCT,S-3-0.015FCT,S-3-0.015FTR,S3-0R015F1CT,S-3-0.015FDKR
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.21.0080
Win Source Part Number	1237190-S3-0R015F1
Ultra Librarian 3D Model	Ultra Librarian S3-0R015F1 CAD Model

Alternative Products

Description

This wirewound chip resistor is a reliable and high-quality component designed for use in various electronic applications.

Resistance: 15 mOhms
Power Rating: 3W
Applications: Current Sensing, Pulse Withstanding, and Safety
Features: Flame-proof and Moisture-resistant
Package: Tape and Reel (TR)
Height: 0.268 inches (6.80mm) when seated
Tolerance: ±1%
Temperature Range: -55°C to 275°C
Package: 6327 J-lead
REACH: Affected
Dimensions: 0.626 inches L x 0.272 inches W (15.90mm x 6.90mm)
ECCN: EAR99
Manufacturer: Riedon
