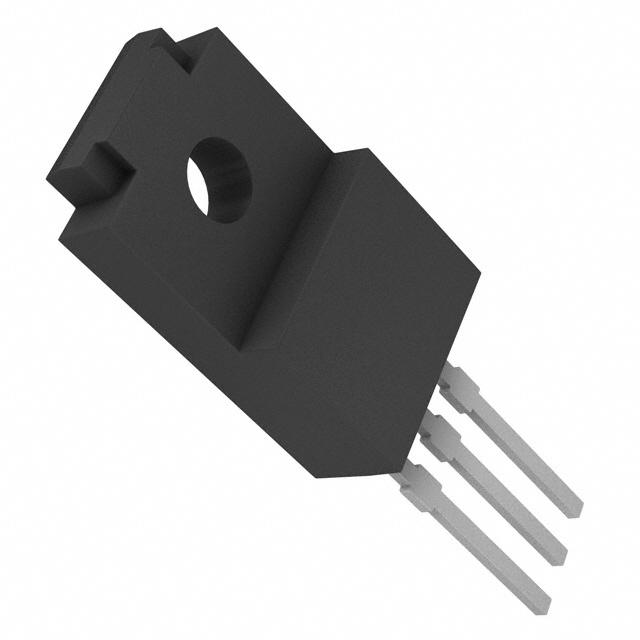

2SD1763AE Rohm Semiconductor
Same model may have multiple batches, images only for reference.

2SD1763AE

Part No 2SD1763AE
Manufacturer Rohm Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN 160V 1.5A TO220FP
Datasheet
2SD1763AE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Bulk
Status Obsolete(EOL)
Transistor Polarity NPN
Maximum Current Collector 1.5A
VCEO Maximum Collector-Emitter Breakdown Voltage 160V
Max Vce (sat) 2V @ 100mA, 1A
Collector Cut-off Current(Max) 1μA (ICBO)
Typical Gain (hFE) (Min) 60 @ 100mA, 5V
Maximum Power Dissipation 2W
Frequency - Transition 80MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-220FP
Win Source Part Number 1004550-2SD1763AE
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SD1763AE CAD Model

Description

The 2SD1763AE from Rohm Semiconductor is an obsolete (EOL) NPN transistor.

  • Type: NPN
  • Product Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Good balance
  • Collector-Emitter Breakdown Voltage (Max): 160V
  • Power Dissipation (Max): 2W
  • Package: TO-220FP
  • Mounting: Through Hole
