Same model may have multiple batches, images only for reference.

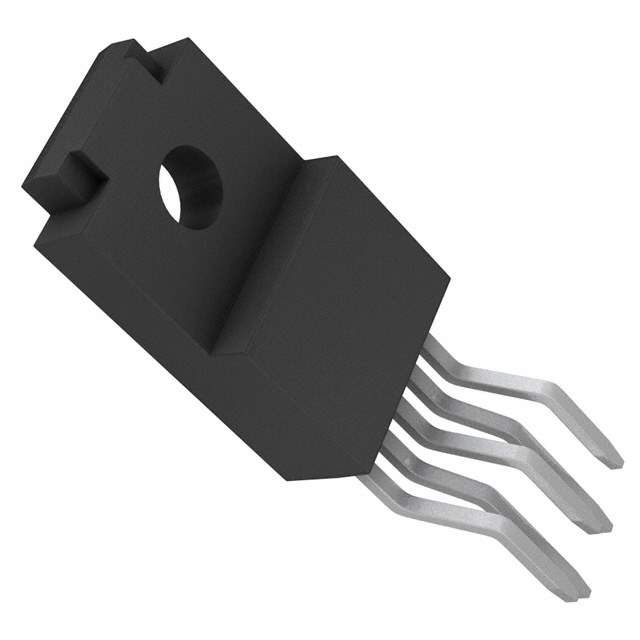

BA05ST-V5 Real Image
Same model may have multiple batches, images only for reference.

BA05ST-V5

Part No BA05ST-V5
Manufacturer Rohm Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 1A TO220FP-5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Tube/Rail
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 25V
Nominal Output Voltage (Min/Fixed) 5V
Output Current 1A
Operating Supply Current 2.5mA to 5mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 5V
Voltage - Dropout (Typical) 0.3V @ 500mA
Mounting Through Hole
Case / Package TO-220FP-5
Win Source Part Number 049043-BA05ST-V5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BA05ST-V5 CAD Model

Description

BA05ST-V5 Voltage Regulator

The BA05ST-V5 offers advanced performance in a familiar package, enhancing the capabilities of the BA05ST series with improved efficiency and stability. Suitable for a broad spectrum of electronic devices.

  • Applications/Projects:
    • Instrumentation circuits
    • Microcontroller power sources
    • Automotive electronics
    • Battery-powered devices
  • Features and Benefits:
    • Enhanced thermal management
    • Increased efficiency
    • Short-circuit protection
    • Improved transient response
  • Additional Details:
    • Output Voltage: 5V
    • Output Current: Up to 1A
    • Package Type: TO-220
