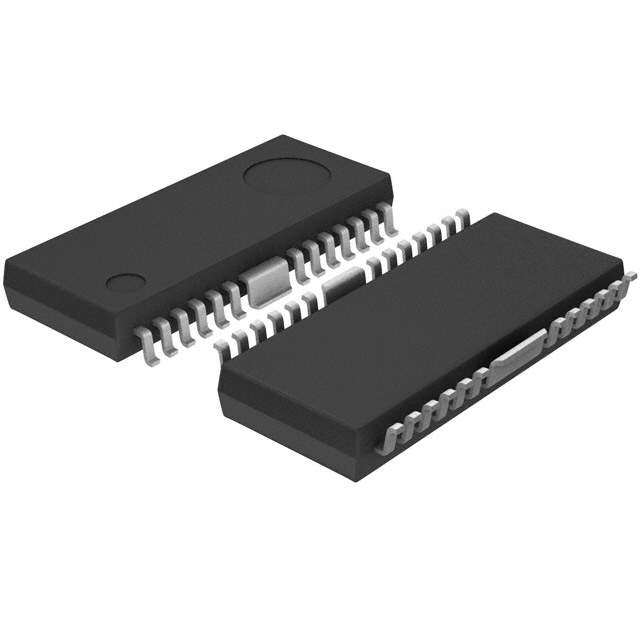

The BD6395FP is a PWM (Pulse Width Modulation) constant-current LED driver IC manufactured by Rohm Semiconductor. This IC is designed to efficiently drive LEDs with a constant current, ensuring consistent brightness and long lifespan. It is particularly suitable for applications such as LED lighting, LCD backlights, and general-purpose LED driving where precise current control is essential.

Applications

• LCD Backlights: Driving LEDs for backlighting in LCD screens of TVs, monitors, and mobile devices.
• LED Lighting: General-purpose LED lighting applications, including desk lamps, architectural lighting, and signage.
• Automotive Lighting: LED driving for car interior lighting, dashboard illumination, and exterior signal lights.
• Gaming Machines: LED control for slot machines and other arcade games.
• Industrial Lighting: Powering LEDs in industrial lighting fixtures.

Features

• PWM Dimming Control: Allows precise adjustment of LED brightness via PWM signal.
• Constant Current Output: Ensures consistent LED brightness regardless of voltage fluctuations.
• Built-in Protection Circuits: Overvoltage, overcurrent, and thermal shutdown protection.
• High Efficiency: Optimizes power consumption, reducing heat and extending battery life.
• Adjustable Output Current: Customizable LED current via external resistor.
• Small Package: Compact package for space-constrained applications.

Benefits

• Consistent LED Brightness: Constant current drive ensures stable and uniform illumination.
• Longer LED Lifespan: Constant current operation reduces stress on LEDs, extending their operational life.
• Energy Efficiency: PWM control and efficient design minimize power consumption.
• Enhanced System Reliability: Built-in protection circuits prevent damage from electrical faults and thermal overload.
• Flexible Design: Adjustable output current allows for customization to different LED specifications.
• Compact Solution: Small package footprint allows for integration into space-sensitive applications.

Additional Details

The BD6395FP typically operates from a supply voltage range of 4.5V to 35V, making it suitable for a wide range of LED lighting applications. The output current can be adjusted via an external resistor, typically in the range of tens to hundreds of milliamps, depending on the specific application requirements. The PWM dimming frequency can be adjusted to avoid audible noise and optimize LED performance. The built-in protection circuits include overvoltage protection (OVP), overcurrent protection (OCP), and thermal shutdown (TSD), which protect the IC and the LEDs from damage in abnormal operating conditions. The device is available in a surface-mount package, such as a SOP (Small Outline Package) or similar, facilitating easy integration into modern electronic devices. Detailed specifications, including electrical characteristics, thermal resistance, and application circuit examples, can be found in the Rohm Semiconductor datasheet for this part. It is important to carefully review the datasheet and follow the recommended operating conditions to ensure optimal performance and prevent damage to the device.
