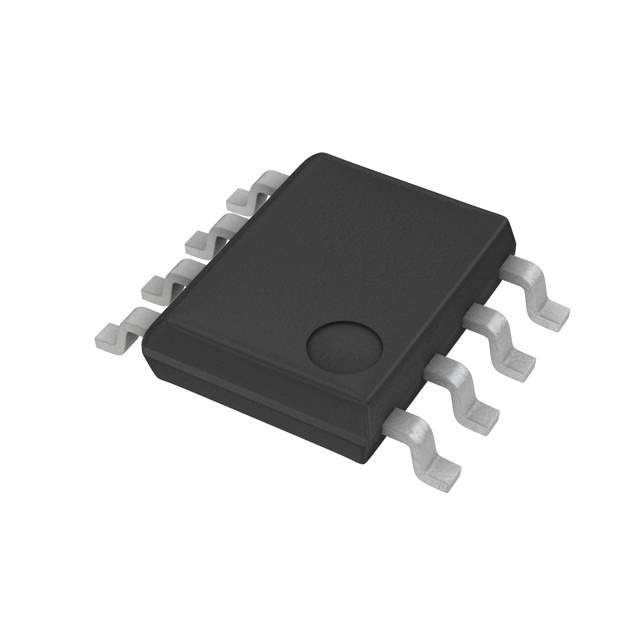

BD7682FJ-LBE2 Real Image
Same model may have multiple batches, images only for reference.

BD7682FJ-LBE2

Part No BD7682FJ-LBE2
Manufacturer Rohm Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC CTLR DC-DC CONV QUASI 8SOIC / AC to DC Switching Converter 20V/15V 134kHz T/R 8-Pin SOP-J
Datasheet
BD7682FJ-LBE2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Rohm Semiconductor
Packaging Reel package
Output Isolation Isolated
Internal Switch(s) No
Topology Flyback
Voltage - Start Up 19.5V
Supply Voltage 15 V ~ 27.5 V
Frequency - Switching 120kHz
Fault Protection Current Limiting, Over Load, Over Voltage
Operating Temperature Range -40°C ~ 150°C (TJ)
Package 8-SOIC (0.154", 3.90mm Width)
Manufacturer Package 8-SOP-J
Mounting SMD
Win Source Part Number 769918-BD7682FJ-LBE2
Popularity Medium
Supply and Demand Status Limited
Family Name BD7682
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian BD7682FJ-LBE2 CAD Model

Description

The BD7682FJ-LBE2 is an integrated circuit manufactured by Rohm Semiconductor.

  • Topology: Flyback
  • Voltage Start-up: 19.5V
  • Switching Frequency: 120kHz
  • Duty Cycle: Specified
  • Fault Protection: Current Limiting, Over Load, and Over Voltage
  • Supply Voltage: 15 V ~ 27.5 V
  • Power (Watts): Not Specified
  • Output Isolation: Isolated
  • Internal Switch: No
  • Voltage Breakdown: Not Specified
  • Mounting: SMD
  • Supply and Demand Status: Limited
