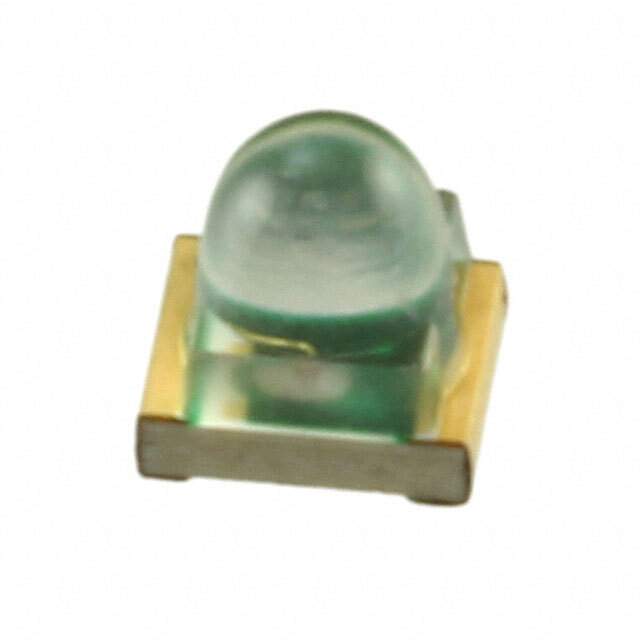

CSL0701DT5 Real Image
Same model may have multiple batches, images only for reference.

CSL0701DT5

Part No CSL0701DT5
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED ORANGE CLEAR SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Packaging Reel
Color Orange
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 35000mcd
Lens Style Round with Domed Top
Lens Size 2.10mm Dia
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Mounting Style SMD
Wavelength - Dominant 605nm
Manufacturer Package 2-SMD, No Lead
Dimension 2.90mm L x 2.50mm W
Height (Maximum) 3.30mm
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806572-CSL0701DT5
Ultra Librarian 3D Model Ultra Librarian CSL0701DT5 CAD Model

Description

This CSL0701DT5 LED from Rohm Semiconductor comes in reel packaging.

  • Color: Orange
  • Lens Style: Clear, round
  • Lens Diameter: 2.10mm
  • Voltage-Forward (Vf): 2.1V
  • Current-Test: 20mA
  • Millicandela: 35000mcd
  • Wavelength-Dominant: 605nm
  • Height (Maximum): 3.30mm
  • Manufacturer Package: 2-SMD, no lead
  • Supply and Demand Status: Balance
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 1 (Unlimited)
