The DTC114TUB is a silicon NPN epitaxial planar transistor with a built-in resistor. Manufactured by Rohm Semiconductor, this pre-biased transistor is designed to simplify circuit design and reduce component count, which can lead to smaller, more efficient electronic devices.

Applications

• Digital Circuits: Used as an inverter or driver in digital logic circuits.
• Switching Circuits: Ideal for low-current switching applications.
• Portable Devices: Commonly found in mobile phones, tablets, and other portable electronics due to its small size and low power consumption.
• Interface Circuits: Can be used as an interface between different voltage levels in a circuit.
• Load Switches: Suitable for turning on and off small loads.

Features

• Built-in Resistors: Contains integrated resistors in the base-emitter and base circuits, eliminating the need for external resistors.
• Small Package Size: Available in compact packages like SOT-346, making it suitable for space-constrained applications.
• NPN Transistor: An NPN transistor configuration.
• Low Saturation Voltage: Offers a low saturation voltage, ensuring efficient switching performance.
• High Input Resistance: The built-in resistor provides a relatively high input resistance, simplifying interfacing with digital circuits.

Benefits

• Reduced Component Count: The integrated resistors minimize the number of external components required, saving board space and reducing assembly costs.
• Simplified Circuit Design: Simplifies circuit design by eliminating the need to calculate and select appropriate resistor values.
• Improved Reliability: Fewer external components can improve the overall reliability of the circuit.
• Space Saving: The small package size is beneficial for compact electronic devices.
• Cost Effective: Reduces overall system cost by integrating resistors into the transistor.

Additional Details

The DTC114TUB typically has an input resistor (R1) of 10 kΩ and a resistor between base and emitter (R2) of 10 kΩ. It is designed for low-power, low-voltage applications. The transistor's specifications include a collector current (Ic) rating, base voltage (Vbe), and collector-emitter voltage (Vce) rating that must be adhered to for reliable operation. It's crucial to consult the datasheet for precise electrical characteristics and recommended operating conditions.

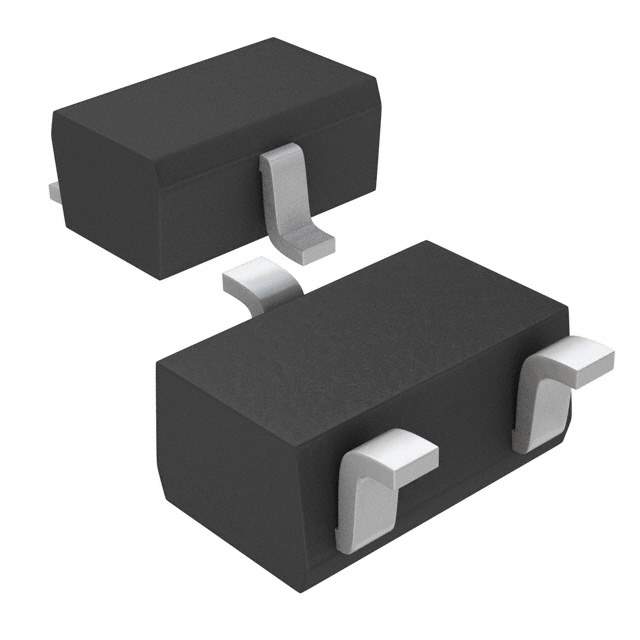

The SOT-346 package (or similar small outline package) is commonly used for this type of pre-biased transistor due to its compact size and ease of surface mounting on printed circuit boards. The device is suitable for automated assembly processes, further contributing to manufacturing efficiency.
