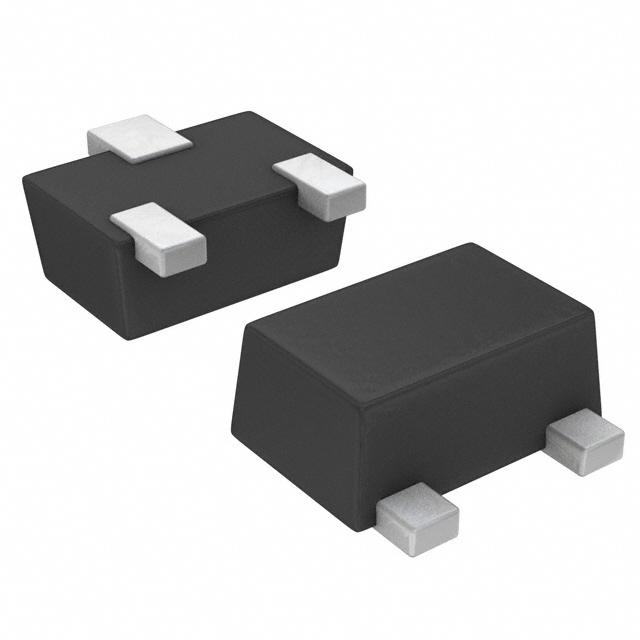

DTD723YMT2L Rohm Semiconductor
Same model may have multiple batches, images only for reference.

DTD723YMT2L

Part No DTD723YMT2L
Manufacturer Rohm Semiconductor
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS NPN 150MW VMT3
Datasheet
DTD723YMT2L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Transistor Polarity NPN - Pre-Biased
Maximum Current Collector 200mA
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Resistor - Base (R1) (Ohms) 2.2k
Resistor - Emitter Base (R2) (Ohms) 10k
Typical Gain (hFE) (Min) 140 @ 100mA, 2V
Max Vce (sat) 300mV @ 2.5mA, 50mA
Collector Cut-off Current(Max) 500nA
Frequency - Transition 260MHz
Maximum Power Dissipation 150mW
Mounting SMD (SMT)
Case / Package VMT3
Win Source Part Number 1035611-DTD723YMT2L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DTD723YMT2L CAD Model

Description

The Rohm Semiconductor DTD723YMT2L is a pre-biased NPN transistor with a maximum collector-emitter breakdown voltage of 30V and a maximum power dissipation of 150mW.

  • Maximum Collector-Emitter Breakdown Voltage: 30V
  • Maximum Power Dissipation: 150mW
  • Resistor-Base (R1): 2.2k
  • Resistor-Emitter Base (R2): 10k
  • Frequency Transition: 260MHz
  • Collector Cut-off Current (Max): 500nA
  • Package: VMT3
  • Application: Discrete semiconductor products
  • Supply and Demand: Balance
