Same model may have multiple batches, images only for reference.

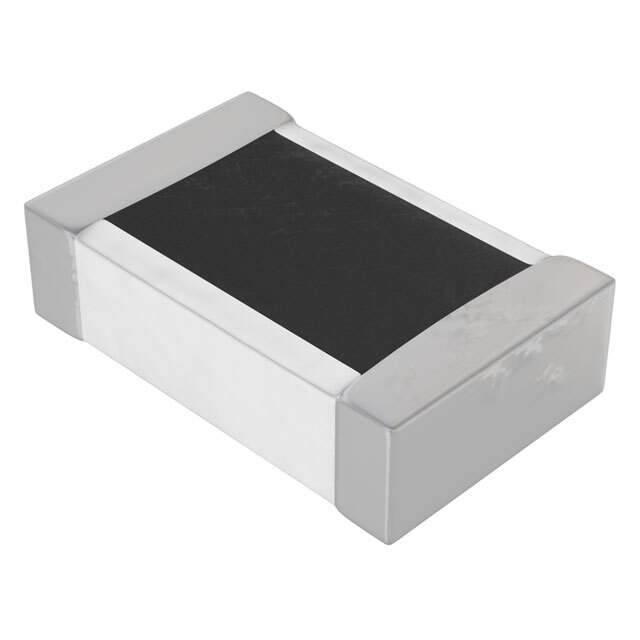

ESR10EZPJ103 Real Image
Same model may have multiple batches, images only for reference.

ESR10EZPJ103

Part No ESR10EZPJ103
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES SMD 10K OHM 5% 0.4W 0805 / 10 kOhms ±5% 0.4W, 2/5W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
Datasheet
ESR10EZPJ103 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Resistance 10 kOhms
Tolerance ±5%
Power (Watts) 0.4W, 2/5W
Composition Thick Film
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number RHM10KKTR,Q7049154I,RHM10KKCT,RHM10KKDKR
Standard Package 5,000
Win Source Part Number 1326402-ESR10EZPJ103
Ultra Librarian 3D Model Ultra Librarian ESR10EZPJ103 CAD Model

Description

The ESR10EZPJ103 is a chip resistor manufactured by Rohm Semiconductor.

  • Type: Thick Film
  • Resistance: 10 kOhms
  • Tolerance: ±5%
  • Package: Reel-TR
  • Standard Package: 5,000
  • AEC-Q200: Yes
  • Pulse-withstanding: Yes
  • Power Rating: 0.4W, 2/5W
  • Size/Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height-Seated (max): 0.026" (0.65mm)
  • Temperature Coefficient: ±200ppm/°C
  • Temperature Range: -55°C ~ 155°C
