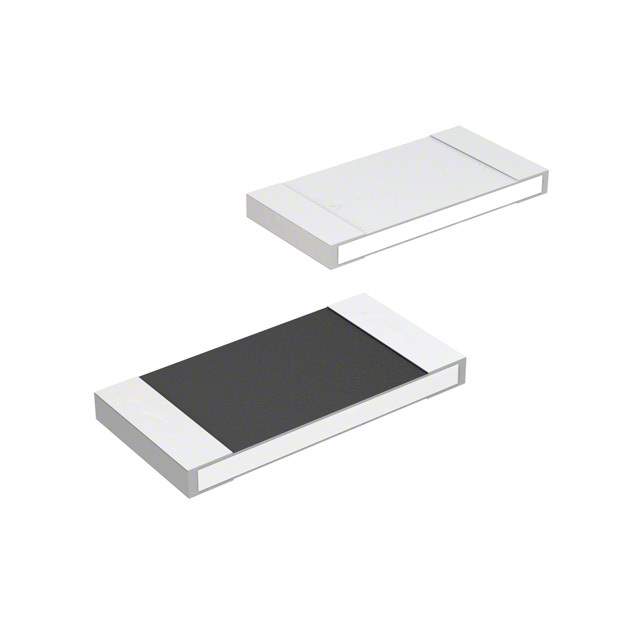

The MCR10EZHJ102 is a thick film chip resistor manufactured by Rohm Semiconductor. This resistor is designed for general-purpose applications in electronic circuits, providing a stable and reliable resistance value. It is commonly used in various electronic devices for current limiting, voltage division, and other resistive functions.

Applications

• General-Purpose Circuits: Providing resistance in various electronic circuits.
• Current Limiting: Limiting current flow in electronic devices.
• Voltage Division: Creating voltage dividers for signal conditioning.
• Pull-Up/Pull-Down Resistors: Implementing pull-up and pull-down functions in digital circuits.
• Feedback Resistors: Providing feedback in amplifier circuits.
• Consumer Electronics: Used in TVs, radios, and other consumer electronic devices.

Features

• Thick Film Construction: Offers excellent stability and reliability.
• Small Size: Allows for high-density mounting on printed circuit boards.
• High Power Rating: Dissipates a significant amount of power without failure.
• Wide Resistance Range: Available in a wide range of resistance values to meet various application requirements.
• RoHS Compliant: Complies with the Restriction of Hazardous Substances directive.
• Surface Mount Technology (SMT): Designed for automated assembly on printed circuit boards.

Benefits

• Stable Performance: Provides consistent resistance values over time and temperature.
• Reduced Board Space: Small size allows for high-density mounting.
• Improved Reliability: Robust construction ensures long-term reliability.
• Easy Assembly: Designed for automated assembly, reducing manufacturing costs.
• Versatile Application: Suitable for a wide range of electronic circuits.

Additional Details

The MCR10EZHJ102 has a resistance value of 1 kΩ (102 = 10 x 10^2 ohms) with a tolerance of ±5% (indicated by the 'J'). The power rating is typically 0.125 W (1/8 W). The operating temperature range generally spans from -55°C to +155°C. The 'MCR10' indicates the series and size of the resistor, which is typically a 0402 size (1.0mm x 0.5mm). The 'EZH' likely refers to the temperature coefficient or other specific performance characteristics. These are general purpose chip resistors.
