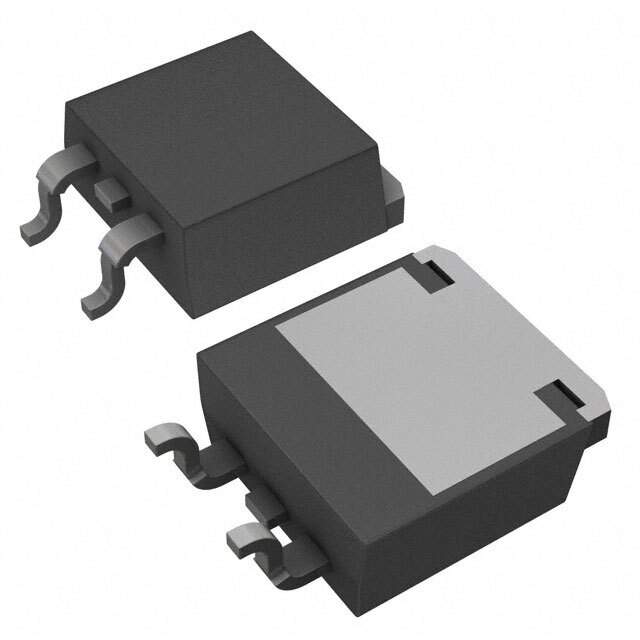

The R5016ANJ is a high-side switch IC manufactured by Rohm Semiconductor. It is designed to protect circuits by cutting off power when an overcurrent or short circuit is detected. This is particularly useful in systems where a reliable power supply is critical to prevent damage to sensitive components.

Applications

• USB Power Management: Protects USB ports from overcurrent and short circuits in computers, hubs, and peripherals.
• Power Distribution: Used in power distribution systems to protect individual loads from faults.
• Industrial Equipment: Provides overcurrent and short circuit protection in industrial control systems.
• Battery Chargers: Protects battery chargers from overloads and short circuits.

Features

• Overcurrent Protection: Limits the output current to a safe level, protecting the load from damage.
• Short Circuit Protection: Quickly shuts off the output in the event of a short circuit.
• Thermal Shutdown: Protects the IC from overheating by shutting down the output when the junction temperature exceeds a safe limit.
• Soft-Start Function: Reduces inrush current during startup, minimizing stress on the power supply.
• Fault Flag Output: Indicates when an overcurrent or short circuit has occurred.
• Small Package: Compact package size for space-constrained applications.

Benefits

• Improved System Reliability: Protects circuits from damage due to overcurrent and short circuits, increasing overall system reliability.
• Reduced Downtime: Fast response to faults minimizes downtime and prevents equipment damage.
• Simplified Design: Integrated features simplify circuit design and reduce component count.
• Enhanced Safety: Protects users from electrical hazards.
• Cost-Effective Solution: Provides a reliable and cost-effective protection solution.

Additional Details

The R5016ANJ typically operates within a specific voltage and temperature range, as detailed in the datasheet. It includes features such as a current limit and thermal shutdown to prevent damage in fault conditions. The device can be configured with external components to adjust the current limit and response time according to the specific application requirements. The small package size makes it suitable for use in compact and portable devices. It is widely used in applications where reliable power protection is essential for safe and efficient operation.
