The RB160M-40 is a Schottky barrier diode manufactured by Rohm Semiconductor. It is designed for high-speed switching applications and features a low forward voltage drop, making it suitable for circuits where efficiency is crucial. This diode is commonly used in various electronic systems for rectification, voltage clamping, and protection purposes.

Applications

• High-frequency rectification in switching power supplies.
• DC-DC converters to improve efficiency and reduce power loss.
• Reverse polarity protection to safeguard sensitive electronic components.
• Free-wheeling diode in inductive load switching circuits.
• Voltage clamping to protect circuits from voltage spikes.

Features

• Low forward voltage drop (Vf): Minimizes power loss and improves efficiency.
• High-speed switching: Enables fast response times in high-frequency applications.
• Compact package: Allows for space-saving designs on circuit boards.
• High surge current capability: Provides robustness against transient voltage spikes.
• Operating Temperature: Typically -40°C to +125°C, suitable for a wide range of environments.

Benefits

• Increased energy efficiency: Reduces power consumption and heat generation in electronic devices.
• Improved circuit performance: Enables faster switching speeds and more precise voltage control.
• Enhanced reliability: Protects sensitive components from damage due to voltage spikes and reverse polarity.
• Simplified circuit design: Facilitates the implementation of efficient and reliable power management solutions.
• Reduced system cost: By reducing power loss, the need for larger heat sinks can be minimized, leading to smaller more compact designs.

Additional Details

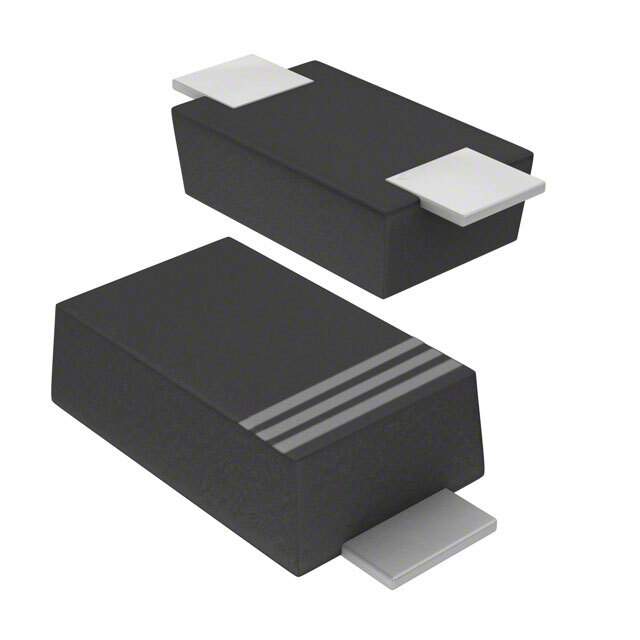

The RB160M-40 typically comes in a surface-mount package, such as a SOD-123 or similar. The forward current (If) rating is usually around 1A to 1.5A, and the peak reverse voltage (Vrrm) is 40V. Its low forward voltage drop and fast switching characteristics make it ideal for high-efficiency power conversion and protection applications. The specific package and ratings should always be confirmed by reviewing the manufacturer's datasheet.
