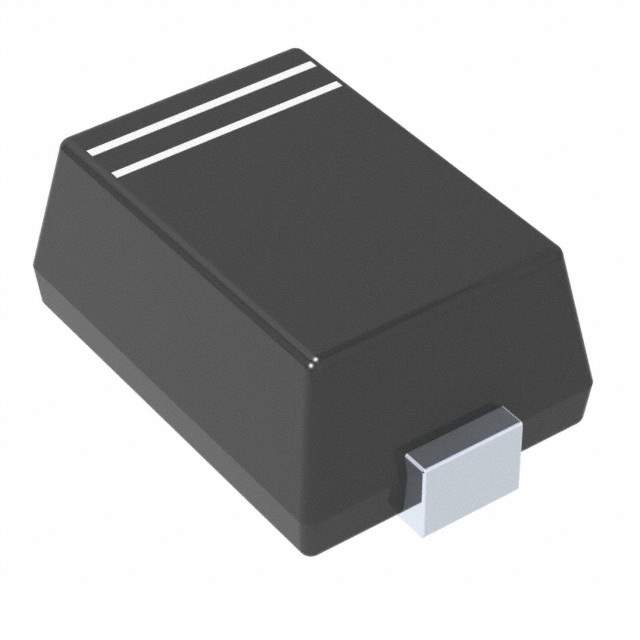

The RB520CM-60 is a Schottky Barrier Diode manufactured by Rohm Semiconductor. It is designed for low forward voltage drop and high-speed switching, which makes it suitable for use in high-efficiency power circuits and fast-switching applications. This diode is commonly used in DC-DC converters and reverse polarity protection circuits.

Applications

• DC-DC converters
• Reverse polarity protection
• Voltage clamping
• High-speed switching circuits
• Power management circuits

Features

• Low Forward Voltage Drop: Minimizes power loss and improves efficiency.
• High-Speed Switching: Enables fast recovery times for efficient operation.
• Surface Mount Package: Facilitates automated assembly and reduces board space.
• High Surge Current Capability: Offers robust protection against transient surges.
• Small Package Size: Allows for high-density mounting.

Benefits

• Improved Efficiency: Reduces power consumption in electronic circuits.
• Enhanced Reliability: Provides stable performance in harsh operating conditions.
• Compact Design: Allows for smaller and more integrated circuit designs.
• Protection Against Surges: Prevents damage to sensitive components from voltage spikes.
• Simplified Circuit Design: Easier to integrate into existing designs due to small size and performance.

Technical Specifications

The RB520CM-60 features a maximum repetitive peak reverse voltage of 60V. It has a forward current rating of 0.2A. The device is available in a compact surface mount package. The low forward voltage drop, typically around 0.4V at the rated current, contributes to its high efficiency. The fast switching speed minimizes switching losses and improves system efficiency. The operating temperature range is typically -40°C to +125°C.
