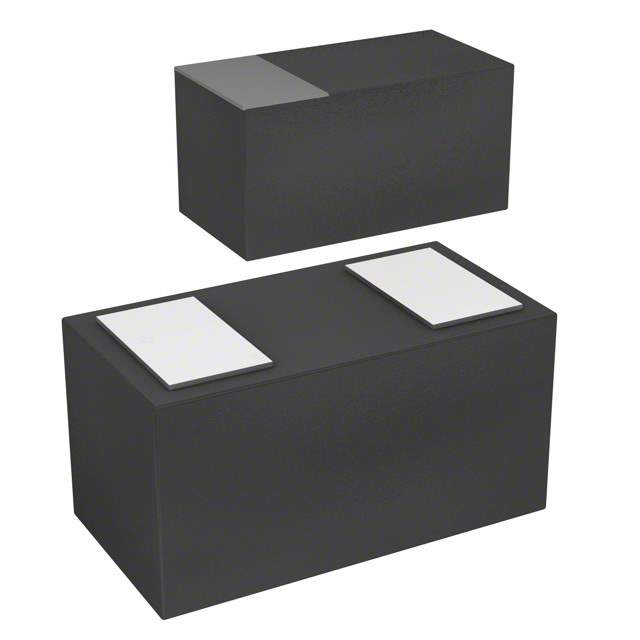

The RB520HS-30T15R is a Schottky Barrier Diode manufactured by Rohm Semiconductor. This diode is specifically designed for high-speed switching applications where low forward voltage drop and fast recovery times are crucial. It is commonly used in portable devices, DC-DC converters, and other electronic circuits requiring efficient rectification.

Applications

• DC-DC converters in portable devices
• High-frequency rectification
• Reverse polarity protection
• Free-wheeling diodes
• Voltage clamping

Features

• Low forward voltage drop
• Fast switching speed
• Small SOT-23 package
• High reliability
• Low leakage current

Benefits

• Improved efficiency in power conversion
• Reduced power dissipation
• Compact design for space-constrained applications
• Enhanced circuit protection
• Increased system reliability

Specifications

The RB520HS-30T15R features a maximum repetitive peak reverse voltage (VRRM) of 30V. It has a forward current (IF) rating of 200mA. The forward voltage (VF) is typically 0.39V at a forward current of 100mA. It is packaged in a small SOT-23 surface-mount package. The operating junction temperature range is typically -40°C to +125°C. This diode's low forward voltage drop minimizes power loss, while its fast switching speed makes it ideal for high-frequency applications.

The RB520HS-30T15R Schottky diode offers a combination of performance and compact size, making it a popular choice for designers looking to optimize their power management circuits in portable devices and other space-sensitive applications. Its efficiency and reliability contribute to its overall suitability for modern electronic designs.
