The RD3P200SNFRATL is a N-Channel MOSFET transistor from Rohm Semiconductor. It has a drain to source voltage of 100 V and a continuous drain current of 20A at 25°C.

• Maximum on-resistance (Rds On): 46mOhm @ 20A and 10V
• Gate charge (Qg): 55 nC @ 10 V
• Input capacitance (Ciss): 2100 pF @ 25 Vds
• Maximum gate-source voltage (Vgs): ±20V
• Operating temperature range: 150°C

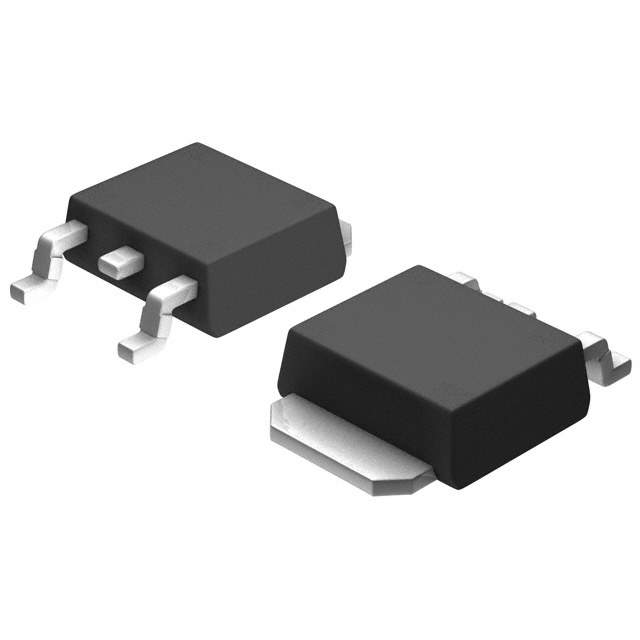

• Package: TO-252-3, DPak (2 Leads + Tab), SC-63 package
• ROHS3 compliant: Yes
• Applications: power supplies, motor drives, and lighting systems
