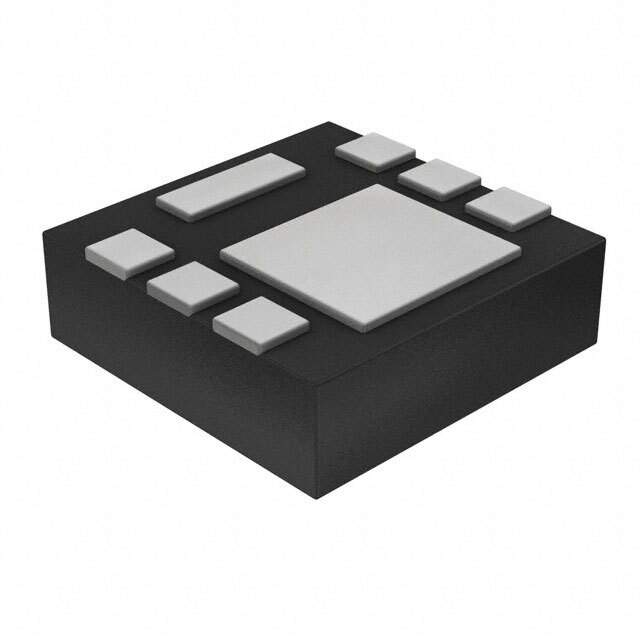

The RF4C050AP is a Schottky Barrier Diode manufactured by Rohm Semiconductor. These diodes are designed for applications requiring fast switching speeds and low forward voltage drop.

Applications:

• DC-DC Converters: Used as rectifier diodes in switching power supplies and DC-DC converters.
• Reverse Polarity Protection: Protects circuits from damage due to reversed polarity.
• Free-Wheeling Diodes: Used in inductive load circuits to prevent voltage spikes.
• Solar Inverters: Used for bypass diodes and rectification.
• LED Lighting: Used in LED driver circuits for efficient power conversion.

Features:

• Schottky Barrier Diode: Offers fast switching speeds and low forward voltage drop.
• Low Forward Voltage Drop (VF): Reduces power loss and improves efficiency.
• High Surge Current Capability: Withstands high surge currents.
• Low Leakage Current: Minimizes current leakage.
• Surface Mount Package: Facilitates automated assembly and compact design.
• RoHS Compliant: Compliant with Restriction of Hazardous Substances Directive.

Benefits:

• High Efficiency: Low forward voltage drop reduces power dissipation and improves efficiency.
• Fast Switching: Minimizes switching losses, enabling higher frequency operation.
• Compact Design: Surface mount package allows for smaller and denser circuit layouts.
• Reliable Performance: Designed for reliable operation in demanding applications.

Technical Specifications:

Key specifications include peak reverse voltage (VRRM), average forward current (IF(AV)), forward voltage (VF), and surge current (IFSM). Refer to the Rohm Semiconductor datasheet for the RF4C050AP for detailed information, including thermal resistance and junction capacitance.
