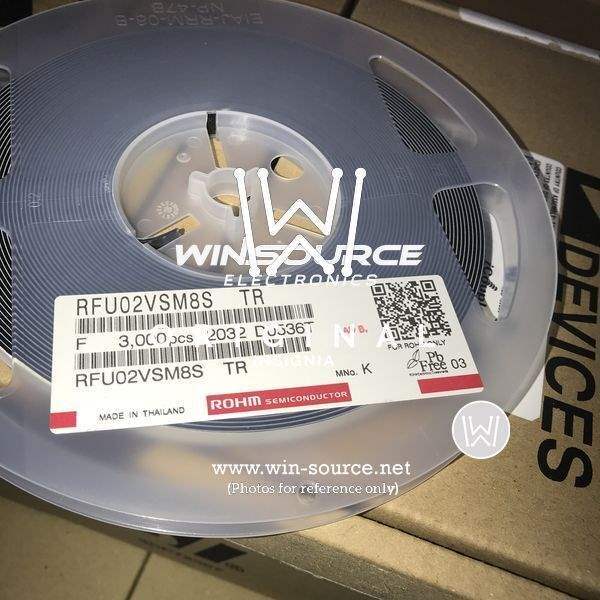

RFU02VSM8STR Real Image RFU02VSM8STR label picture
Same model may have multiple batches, images only for reference.
RFU02VSM8STR Real Image RFU02VSM8STR label picture
RFU02VSM8STR Real Image RFU02VSM8STR label picture
Same model may have multiple batches, images only for reference.

RFU02VSM8STR

Part No RFU02VSM8STR
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GP 800V 200MA TUMD2SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Packaging Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 800V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Maximum) at If 3V at 200mA
Reverse Recovery Time (trr) 25ns
Current - Reverse Leakage at Vr 10μA at 800V
Capacitance at Vr, F 4pF at 0V, 1MHz
Mounting Style SMD
Manufacturer Package 2-SMD, Flat Lead
Supplier Device Package TUMD2SM
Operating Temperature - Junction 150°C (Maximum)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805361-RFU02VSM8STR
Ultra Librarian 3D Model Ultra Librarian RFU02VSM8STR CAD Model

Description

The RFU02VSM8STR is a standard diode from Rohm Semiconductor. It has an average rectified current of 200mA and a reverse recovery time of 25ns.

  • Average Rectified Current: 200mA
  • Reverse Recovery Time: 25ns
  • Maximum Operating Temperature: 150°C
  • Maximum DC Reverse Voltage: 800V
  • Forward Voltage @ Current: 3V @ 200mA
  • Reverse Leakage Current @ Reverse Voltage: 10μA @ 800V
  • Capacitance @ Voltage @ Frequency: 4pF @ 0V @ 1MHz
  • Package: TUMD2SM
  • Packaging: Reel
  • Manufacturer Pack Quantity: 3,000
  • Supply and Demand Status: Balanced
