Same model may have multiple batches, images only for reference.

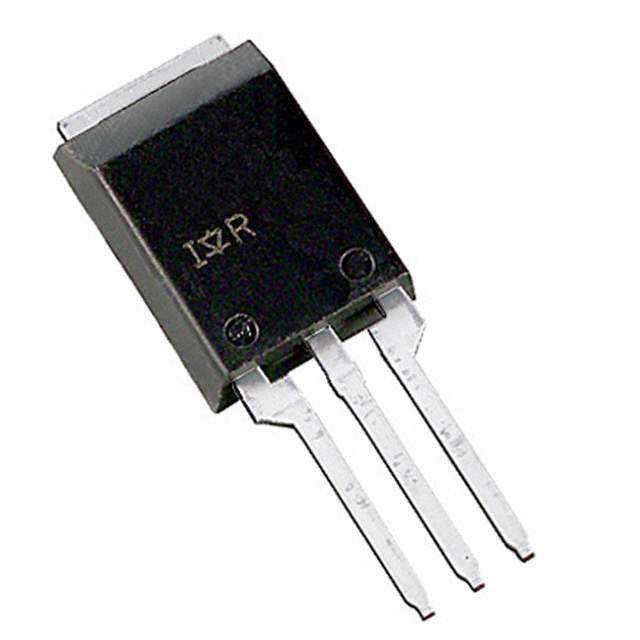

IRFBA22N50A Real Image
Same model may have multiple batches, images only for reference.

IRFBA22N50A

Part No IRFBA22N50A
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 500V 24A SUPER-220
Datasheet
IRFBA22N50A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 500V
Continuous Drain Current at 25°C 24A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 115nC @ 10V
Max Input Capacitance 3400pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 340W (Tc)
Maximum Rds On at Id,Vgs 230 mOhm @ 13.8A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package SUPER-220 (TO-273AA)
Dimension Super-220
Win Source Part Number 069464-IRFBA22N50A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IRFBA22N50A CAD Model

Description

The Vishay electronic component is a medium-popularity product that is manufactured by Vishay.

  • Win Source Part Number: 069464-IRFBA22N50A
  • Packaging: Tube/Rail
  • Mounting Type: Through Hole
  • Technology: MOSFET
  • Polarity: N-Channel
  • Maximum Power Dissipation: 340W (Tc)
  • Drive Voltage: 10V
  • Temperature Range: -55°C to 150°C (TJ)
