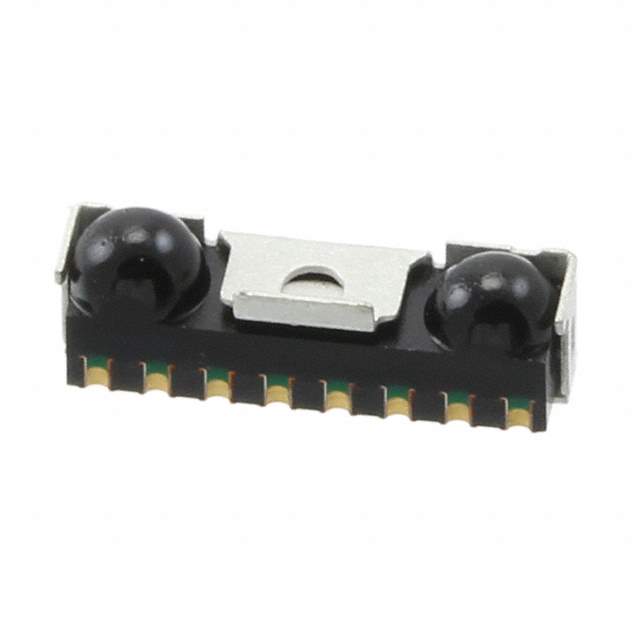

The RPM871-H14E2 is an infrared remote control receiver module manufactured by Rohm Semiconductor. This component is designed to detect and demodulate infrared signals transmitted by remote controls, converting them into a digital signal that can be easily processed by a microcontroller or other digital logic. These modules are commonly used in a wide variety of consumer electronics and other devices that require remote control functionality.

Applications

• Televisions and Set-Top Boxes
• DVD and Blu-ray Players
• Audio Receivers and Amplifiers
• Air Conditioners and Other Home Appliances
• Remote-Controlled Toys and Robots
• Industrial Control Systems

Features

• Compact and lightweight package
• High sensitivity for reliable signal detection
• Excellent noise immunity against ambient light and electrical interference
• Built-in preamplifier and automatic gain control (AGC)
• Operating voltage: 4.5V to 5.5V
• Carrier Frequency: 37.9kHz

Benefits

• Enables reliable remote control functionality
• Simplifies receiver circuit design
• Reduces the size and cost of remote control receiver circuits
• Provides stable performance in various operating environments
• Low power consumption

Additional Details

The RPM871-H14E2 integrates a PIN photodiode, a preamplifier, and a demodulation circuit into a single molded package. The AGC circuit automatically adjusts the receiver's sensitivity to maintain a stable output signal even with variations in the received infrared signal strength. This module is designed to be highly resistant to noise from fluorescent lights, incandescent lights, and other sources of interference. The output signal is typically a logic-low signal when an infrared signal is received and a logic-high signal when no signal is present. The peak wavelength is 940nm. The supply current is typically 0.7mA and is RoHS compliant.
