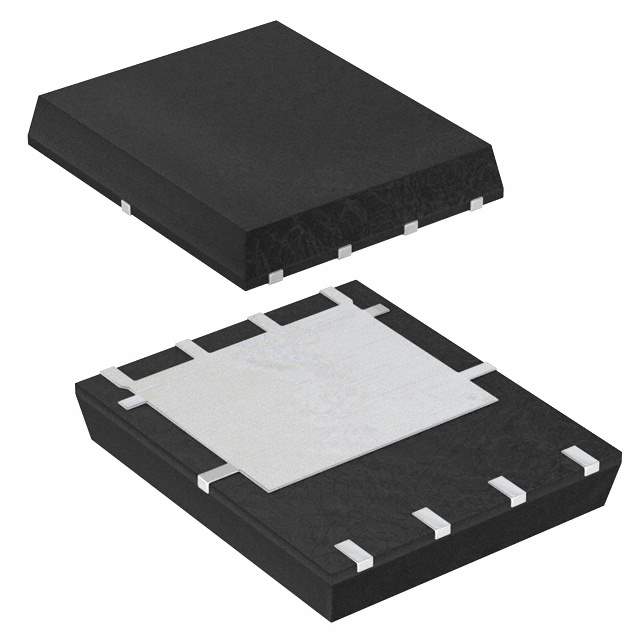

RS1E260ATTB1 Real Image
Same model may have multiple batches, images only for reference.

RS1E260ATTB1

Part No RS1E260ATTB1
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 30V 26A/80A 8HSOP / P-Channel 30 V 26A (Ta), 80A (Tc) 3W (Ta) Surface Mount 8-HSOP
Datasheet
RS1E260ATTB1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer Rohm Semiconductor
Packaging Reel - TR
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 26A, 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 3.1mOhm @ 26A, 10V
Vgs(th) (Max) @ Id 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 175 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 7850 pF @ 15 V
Power Dissipation (Max) 3W
Temperature Range - Operating 150°C (TJ)
Mounting Surface Mount
Supplier Device Package 8-HSOP
Case / Package 8-PowerTDFN
Base Product Number RS1E
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number RS1E260ATTB1TR,RS1E260ATTB1DKR,RS1E260ATTB1CT
Standard Package 2,500
Win Source Part Number 1324657-RS1E260ATTB1
Ultra Librarian 3D Model Ultra Librarian RS1E260ATTB1 CAD Model

Description

The RS1E260ATTB1 is a P-channel MOSFET transistor.

  • Drain to Source Voltage: 30V
  • Continuous Drain Current: 26A @ 25°C and 80A (Tc)
  • Maximum Rds On: 3.1mOhm @ 26A, 10V
  • Gate Charge: 175 nC @ 10V
  • Input Capacitance: 7850 pF @ 15V
  • Maximum Vgs(th): 2.5V @ 1mA
  • Maximum Vgs: ±20V
  • Package: Reel - TR
  • Standard Package: 2,500
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-HSOP
