RW1A030APT2CR Rohm Semiconductor

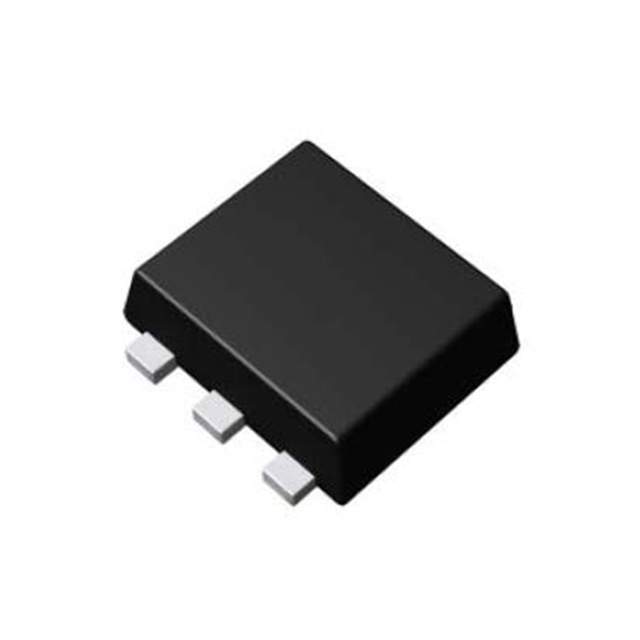

Same model may have multiple batches, images only for reference.

RW1A030APT2CR

Part No RW1A030APT2CR
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 12V 3A WEMT6
Datasheet
RW1A030APT2CR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 12V
Continuous Drain Current at 25°C 3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 1V @ 1mA
Max Gate Charge 22nC @ 4.5V
Max Input Capacitance 2700pF @ 6V
Maximum Gate-Source Voltage -8V
Power Dissipation (Max) 700mW (Ta)
Maximum Rds On at Id,Vgs 42 mOhm @ 3A, 4.5V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-WEMT
Dimension SOT-563, SOT-666
Win Source Part Number 1093109-RW1A030APT2CR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RW1A030APT2CR CAD Model

Description

The Rohm Semiconductor RW1A030APT2CR is a P-Channel MOSFET designed by Rohm Semiconductor.

  • Packaging: reel
  • Mounting Technology: surface mount technology
  • Applications: discrete semiconductor products
  • Product Status: active
  • Supply and Demand Status: sufficient
  • Maximum Rds on @ Id, Vgs: 42 mOhm @ 3A, 4.5V
  • Maximum Gate-Source Voltage: -8V
