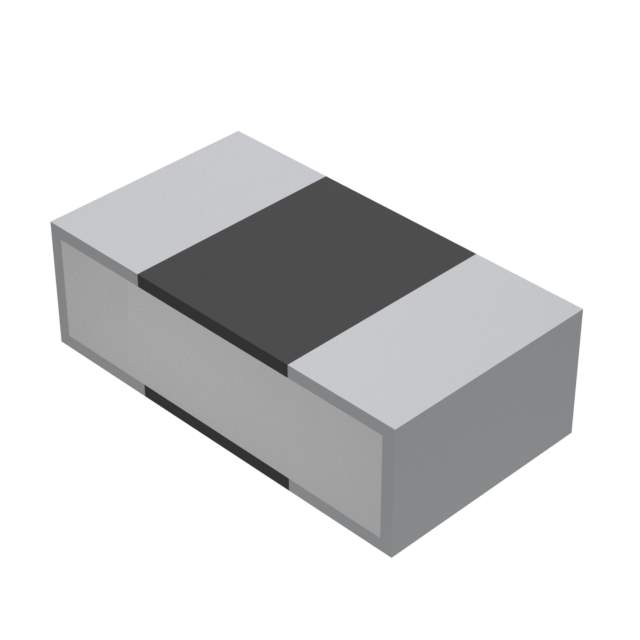

UCR006YVPFLR560

Part No UCR006YVPFLR560
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES 0.56 OHM 1% 1/10W 0201 / 560 mOhms ±1% 0.1W, 1/10W Chip Resistor 0201 (0603 Metric) Current Sense Thick Film
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Rohm Semiconductor
Series UCR
Package Tape & Reel
Resistance 560 mOhms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Features Current Sense
Temperature Coefficient 0/ +300ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201
Size / Dimension 0.024" L x 0.013" W (0.60mm x 0.33mm)
Height - Seated (Max) 0.011" (0.28mm)
Number of Terminations 2
Standard Package 15,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1351313-UCR006YVPFLR560
Ultra Librarian 3D Model Ultra Librarian UCR006YVPFLR560 CAD Model

Description

The Rohm Semiconductor 1351313-UCR006YVPFLR560 is a chip resistor with a resistance of 560 mOhms.

  • Manufacturer: Rohm Semiconductor
  • Resistance: 560 mOhms
  • Series: UCR
  • Type: Current Sense
  • Tolerance: ±1%
  • Packaging: Tape and Reel
  • Standard Package: 15,000
  • Power Rating: 0.1W
  • Temperature Coefficient: 0/+300ppm/°C
