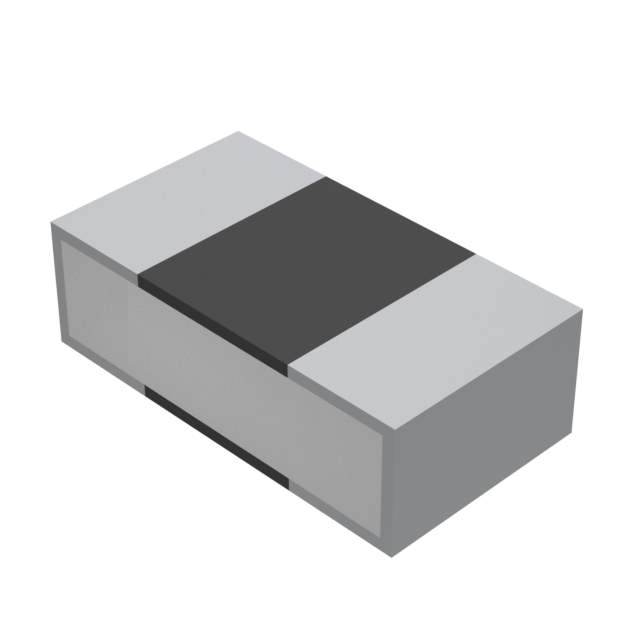

UCR03EWPJSR020 Real Image
Same model may have multiple batches, images only for reference.

UCR03EWPJSR020

Part No UCR03EWPJSR020
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES 0.02 OHM 5% 1/4W 0603 / 20 mOhms ±5% 0.25W, 1/4W Chip Resistor 0603 (1608 Metric) Current Sense Thick Film
Datasheet
UCR03EWPJSR020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Resistance 20 mOhms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Current Sense
Temperature Coefficient 0/ +250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.063" L x 0.034" W (1.60mm x 0.87mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 5,000
Win Source Part Number 1326422-UCR03EWPJSR020
Ultra Librarian 3D Model Ultra Librarian UCR03EWPJSR020 CAD Model

Description

The UCR03EWPJSR020 from Rohm Semiconductor is a chip resistor with a resistance of 20 mOhms and a power rating of 0.25W.

  • Resistance: 20 mOhms
  • Power Rating: 0.25W
  • Tolerance: ±5%
  • Temperature Coefficient: 0/ +250ppm/°C
  • Application: Current Sensing (power supplies, battery chargers, and LED drivers)
  • Package: 0603 (1608 Metric)
  • Mounting: Surface Mount Technology
