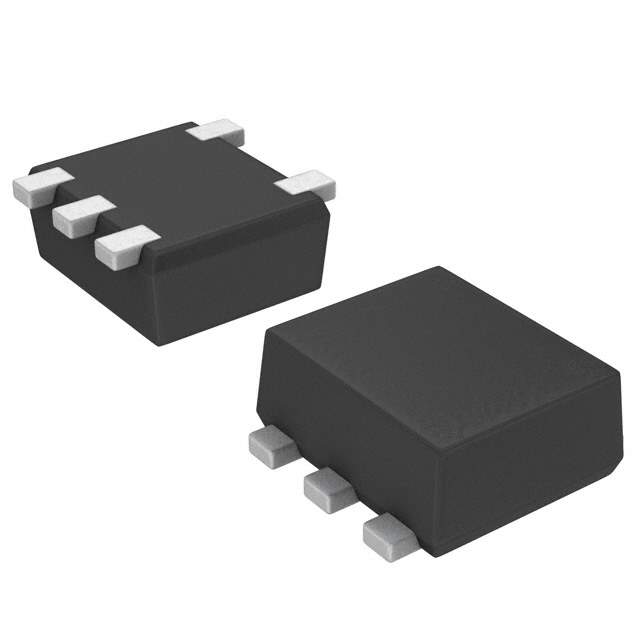

The US5U1 is an ultra-small mold diode manufactured by Rohm Semiconductor. It is designed for use in various electronic circuits for rectification and switching applications. Its compact size makes it suitable for portable devices and applications where space is limited. This diode offers a low forward voltage drop and high switching speed, contributing to efficient circuit operation.

Applications

• Rectification in power supplies.
• Switching in high-speed circuits.
• Reverse polarity protection.
• Signal detection and demodulation.
• Clamping and protection circuits in portable devices.

Features

• Ultra-small mold package: Enables compact circuit layouts.
• Low forward voltage drop: Minimizes power losses in rectification and switching applications.
• High-speed switching: Allows for fast and efficient circuit operation.
• High reliability: Ensures stable performance in various environmental conditions.
• RoHS compliant: Environmentally friendly construction.

Benefits

• Space-saving design: Ultra-small package enables the design of compact electronic devices.
• Improved energy efficiency: Low forward voltage drop reduces power consumption and heat generation.
• Enhanced system performance: High-speed switching enables faster data processing and improved overall system performance.
• Reliable operation: Ensures stable and consistent performance in various applications.
• Environmentally friendly: RoHS compliance ensures that the device meets environmental regulations.

Additional Details

The US5U1 is typically available in a very small package, such as a SOD-923. It is designed for surface mount applications. Its forward voltage drop is typically around 0.5V. The reverse recovery time is very fast, contributing to its high-speed switching capability. The operating temperature range is from -40°C to +125°C. This diode is suitable for a wide range of portable and space-constrained applications, including smartphones, tablets, and wearable devices.
