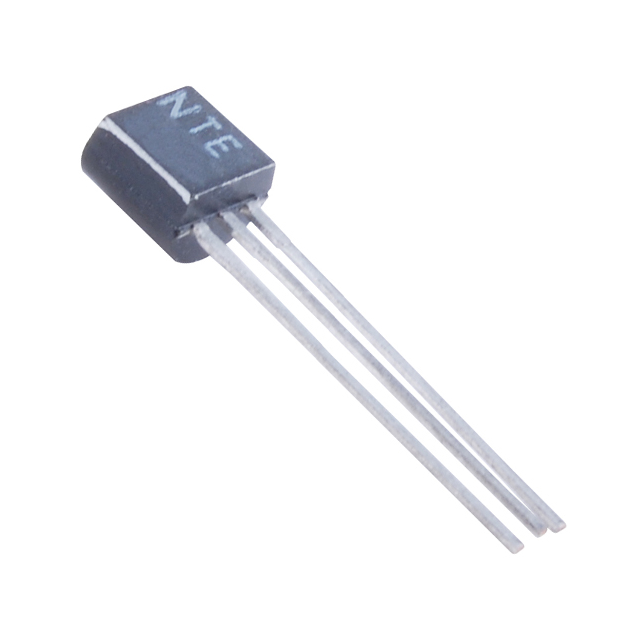

MPSA63 Real Image
Same model may have multiple batches, images only for reference.

MPSA63

Part No MPSA63
Manufacturer Central Semiconductor Corp
Catalog Transistors (BJT) - Single
Description TRANS PNP DARL 20V 0.5A TO-92
Datasheet
MPSA63 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Bulk
Status Active
Transistor Polarity PNP - Darlington
Maximum Current Collector 500mA
VCEO Maximum Collector-Emitter Breakdown Voltage 20V
Max Vce (sat) 1.5V @ 100μA, 100mA
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 10000 @ 100mA, 5V
Maximum Power Dissipation 625mW
Frequency - Transition 125MHz
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-92
Win Source Part Number 1079550-MPSA63
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MPSA63 CAD Model

Description

The Central Semiconductor Corp 1079550-MPSA63 is a medium-popularity PNP Darlington transistor.

  • Supply and Demand: Active
  • Maximum Collector-Emitter Breakdown Voltage: 20V
  • Maximum Collector Current: 500mA
  • Typical Gain (hFE): 10000 @ 100mA and 5V
  • Frequency-Transition: 125MHz
  • Maximum Power Dissipation: 625mW
  • Package: Through-Hole TO-92
  • Maximum Collector Cut-Off Current: 100nA (ICBO)
  • Temperature Range: -65°C to 150°C (TJ)
