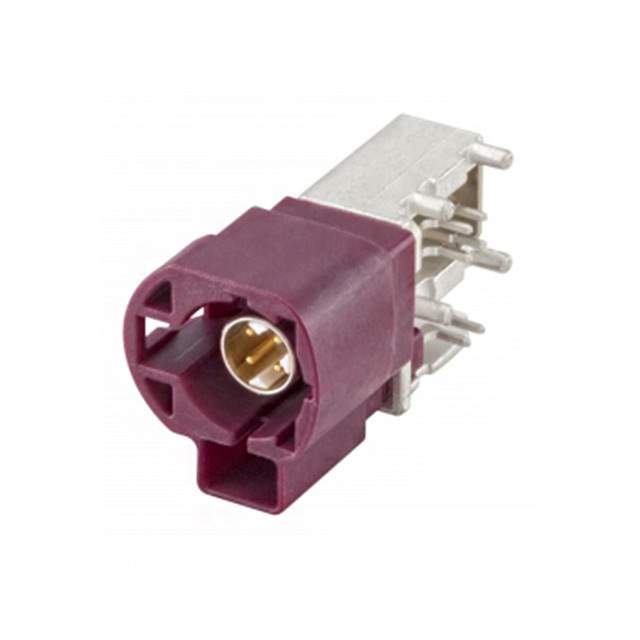

99S20D-40MA5-D Real Image
Same model may have multiple batches, images only for reference.

99S20D-40MA5-D

Part No 99S20D-40MA5-D
Manufacturer Rosenberger
Catalog Coaxial Connectors (RF)
Description CONN HSD FAKRA PLUG R/A 100OHM / HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100Ohm Through Hole, Right Angle Solder
Datasheet
99S20D-40MA5-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Rosenberger
Package Tape & Reel
Connector Style HSD®, Fakra, Quadraxial
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 100Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Latch Lock
Frequency - Max 2 GHz
Number of Ports 1
Features Code D, Rectangular 2 Pos Connector
Housing Color Violet, Bordeaux
Center Contact Material Bronze
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 100 V
Mating Cycles 25
Insertion Loss 0.10dB
Base Product Number 99S20D
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 200715,1868-1487-6,1868-1487-2,1868-1487-1
Standard Package 250
Win Source Part Number 1041833-99S20D-40MA5-D
Ultra Librarian 3D Model Ultra Librarian 99S20D-40MA5-D CAD Model

Description

The 1041833-99S20D-40MA5-D is a coaxial connector that is part of a series of similar products.

  • Design: Provide a reliable and secure connection between electronic devices
  • Type: Male pin plug
  • Fastening Type: Latch lock
  • Voltage Rating: 100V
  • Frequency: Up to 2GHz
  • Design: Compact design
  • Choice for: Engineers and designers who are looking for a high-quality coaxial connector for their electronic devices.
