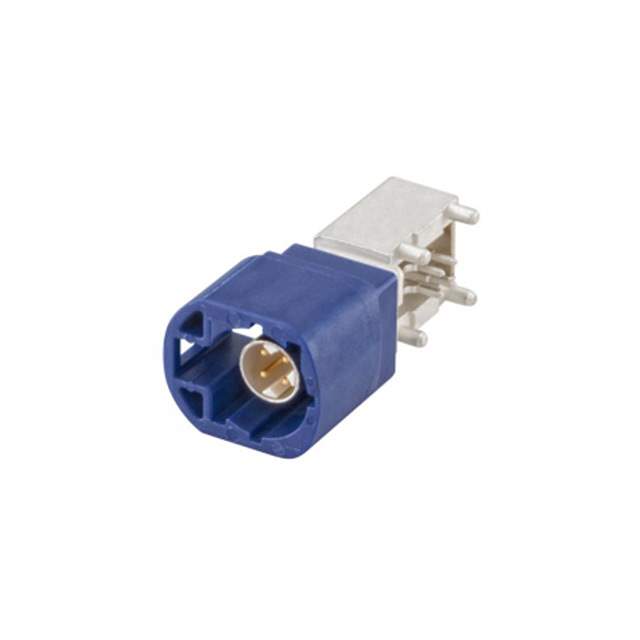

D4S20D-40MA5-C Real Image
Same model may have multiple batches, images only for reference.

D4S20D-40MA5-C

Part No D4S20D-40MA5-C
Manufacturer Rosenberger
Catalog Coaxial Connectors (RF)
Description CONN HSD FAKRA PLUG R/A 100OHM / HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100Ohm Through Hole, Right Angle Solder
Datasheet
D4S20D-40MA5-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Rosenberger
Series HSD®
Package Tape & Reel
Connector Style HSD®, Fakra, Quadraxial
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 100Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Latch Lock
Frequency - Max 2 GHz
Number of Ports 1
Features Code C
Housing Color Blue
Center Contact Material Bronze
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 100 V
Mating Cycles 25
Insertion Loss 0.10dB
Base Product Number D4S20D
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 1868-1508-6,1868-1508-2,1868-1508-1
Standard Package 200
Win Source Part Number 1131617-D4S20D-40MA5-C
Ultra Librarian 3D Model Ultra Librarian D4S20D-40MA5-C CAD Model

Description

The Rosenberger Coaxial Connector is a high-quality connector designed for various applications. It has a series of HSD® and features code C. The connector has a packaging of tape and reel and can be mounted using through hole and right-angle mounting types.

  • Series: HSD®
  • Features Code: C
  • Packaging: Tape and Reel
  • Mounting Type: Through Hole, Right Angle
  • Voltage Rating: 100V
  • Impedance: 100 ohms
  • Body Finish: Nickel
  • Center Contact Plating: Gold
  • Insertion Loss: 0.10dB
  • Mating Cycle: 25
  • HTSUS Code: 8536.69.4010
