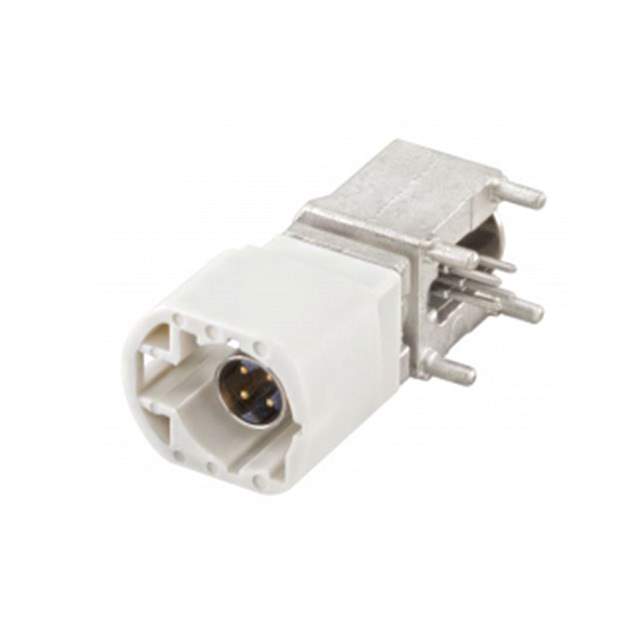

D4S20G-400A5-B Real Image
Same model may have multiple batches, images only for reference.

D4S20G-400A5-B

Part No D4S20G-400A5-B
Manufacturer Rosenberger
Catalog Coaxial Connectors (RF)
Description CONN HSD FAKRA PLUG R/A 100OHM / HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100Ohm Through Hole, Right Angle Solder
Datasheet
D4S20G-400A5-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Rosenberger
Series HSD®
Package Tape & Reel
Connector Style HSD®, Fakra, Quadraxial
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 100Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Latch Lock
Frequency - Max 2 GHz
Number of Ports 1
Features Code B
Housing Color White
Center Contact Material Bronze
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 100 V
Mating Cycles 25
Insertion Loss 0.10dB
Base Product Number D4S20G
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 1868-1515-1,1868-1515-2,1868-1515-6
Standard Package 175
Win Source Part Number 1142355-D4S20G-400A5-B
Ultra Librarian 3D Model Ultra Librarian D4S20G-400A5-B CAD Model

Description

This HSD® Fakra Quadraxial plug male pin connector is a high-performance coaxial connector designed for use in RF applications.

  • Fastening Type: Latch Lock
  • Body Material: Brass
  • Body Finish: Nickel
  • Center Contact Material: Bronze
  • Center Contact Plating: Gold
  • Shield Termination: Soldered
  • Voltage Rating: 100 V
  • Impedance: 100Ohm
  • Maximum Frequency: 2 GHz
  • Temperature Range: -40°C to 105°C
  • Packaging: Tape and Reel
  • Standard Package: 175 Units
