Same model may have multiple batches, images only for reference.

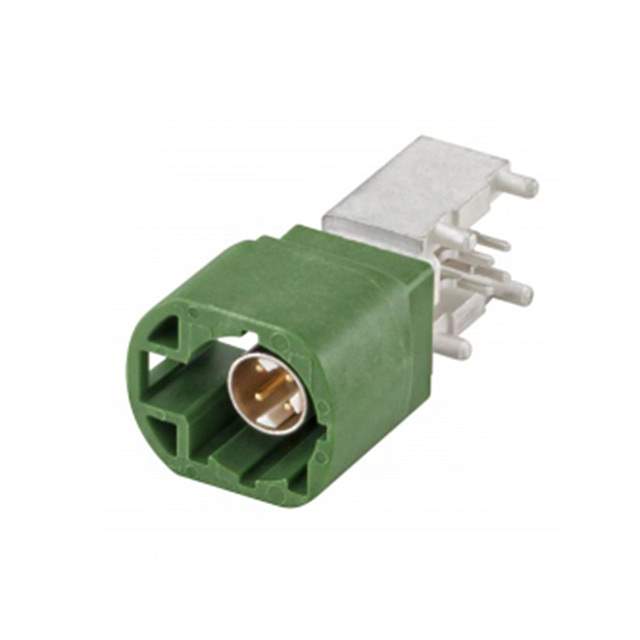

D4S20L-40MA5-E Real Image
Same model may have multiple batches, images only for reference.

D4S20L-40MA5-E

Part No D4S20L-40MA5-E
Manufacturer Rosenberger
Catalog Coaxial Connectors (RF)
Description CONN HSD FAKRA PLUG R/A 100OHM / HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100Ohm Through Hole, Right Angle Solder
Datasheet
D4S20L-40MA5-E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Rosenberger
Series HSD®
Package Tape & Reel
Connector Style HSD®, Fakra, Quadraxial
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 100Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Latch Lock
Frequency - Max 2 GHz
Number of Ports 1
Features Code E
Housing Color Green
Center Contact Material Bronze
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 100 V
Mating Cycles 25
Insertion Loss 0.10dB
Base Product Number D4S20L
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 1868-1527-1,1868-1527-2,1868-1527-6
Standard Package 200
Win Source Part Number 998462-D4S20L-40MA5-E
Ultra Librarian 3D Model Ultra Librarian D4S20L-40MA5-E CAD Model

Description

The Rosenberger D4S20L-40MA5-E is a plug, male pin connector with a code E feature.

  • Fastening Type: Latch Lock
  • Voltage Rating: 100V
  • Operating Temperature Range: -40°C to 105°C
  • Impedance: 100Ohm
  • Body Material: Brass
  • Center Contact Material: Bronze with Gold Plating
  • Dielectric Material: Liquid Crystal Polymer (LCP)
  • Mating Cycle: 25
  • Mounting: Through Hole, Right Angle
  • Housing Color: Green
  • MSL Level: Unlimited
  • ECCN: EAR99
  • HTSUS: 8536.69.4010
