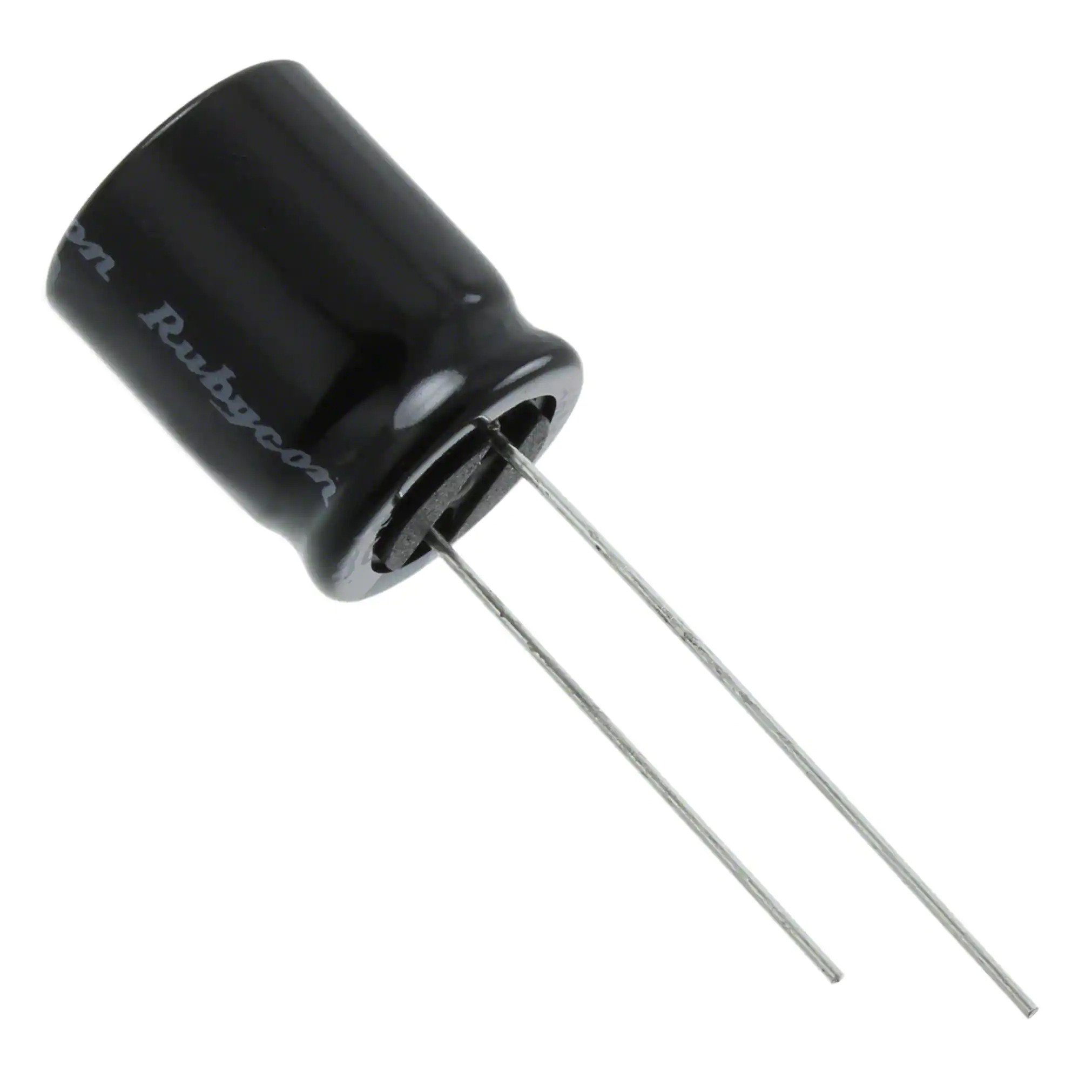

Same model may have multiple batches, images only for reference.
100ZLJ390M12.5X40 Rubycon
Same model may have multiple batches, images only for reference.

100ZLJ390M12.5X40

Part No 100ZLJ390M12.5X40
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 390UF 20% 100V RADIAL / 390 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLJ
Package Bulk
Product Status Active
Capacitance 390 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.573 A @ 120 Hz
Ripple Current @ High Frequency 2.86 A @ 100 kHz
Impedance 32 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.654" (42.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358174-100ZLJ390M12.5X40
Ultra Librarian 3D Model Ultra Librarian 100ZLJ390M12.5X40 CAD Model

Description

The Rubycon 1358174-100ZLJ390M12.5X40 is a high-quality aluminum electrolytic capacitor.

  • Capacitance: 390 µF
  • Voltage Rating: 100 V
  • Application: General Purpose
  • Operating Temperature Range: -40°C to 105°C
  • Package: Radial Can
  • Diameter: 12.50mm
  • Height: 42.00mm
  • Lifetime: 10000 hours @ 105°C
  • ESR: 32 mOhms
  • Ripple Current (Low Frequency): 1.573 A @ 120 Hz
  • Ripple Current (High Frequency): 2.86 A @ 100 kHz
  • Manufacturer: Rubycon
  • Packaging: Bulk
