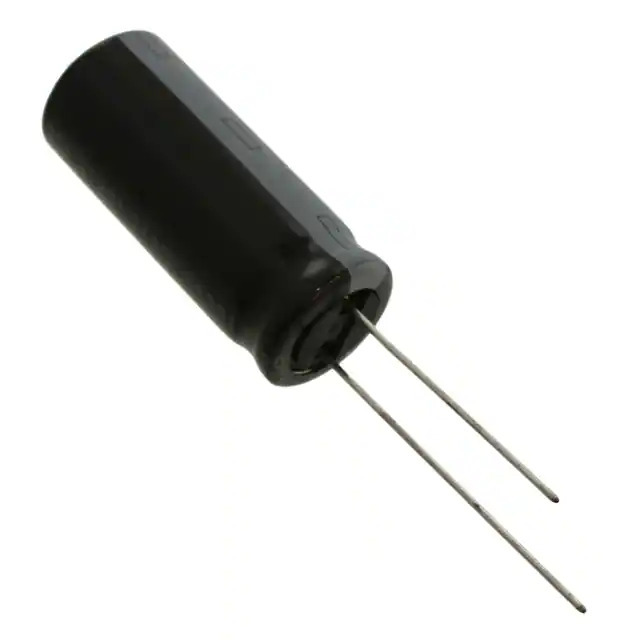

Same model may have multiple batches, images only for reference.
63ZLH560MEFC12.5X30 Rubycon
Same model may have multiple batches, images only for reference.

63ZLH560MEFC12.5X30

Part No 63ZLH560MEFC12.5X30
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 560UF 20% 63V RADIAL / 560 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Product Status Active
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.326 A @ 120 Hz
Ripple Current @ High Frequency 2.41 A @ 100 kHz
Impedance 35 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.260" (32.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358156-63ZLH560MEFC12.5X30
Ultra Librarian 3D Model Ultra Librarian 63ZLH560MEFC12.5X30 CAD Model

Description

The Rubycon ZLH series aluminum electrolytic capacitor is a reliable and high-quality component suitable for a wide range of applications.

  • Capacitance: 560 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Operating Temperature: -40°C ~ 105°C
  • Lifetime @ Temp.: 10,000 Hrs @ 105°C
  • Ripple Current: 1.326 A @ Low Frequency, 2.41 A @ High Frequency
  • Mounting Type: Through Hole
  • Package / Case: Radial Can
