Same model may have multiple batches, images only for reference.

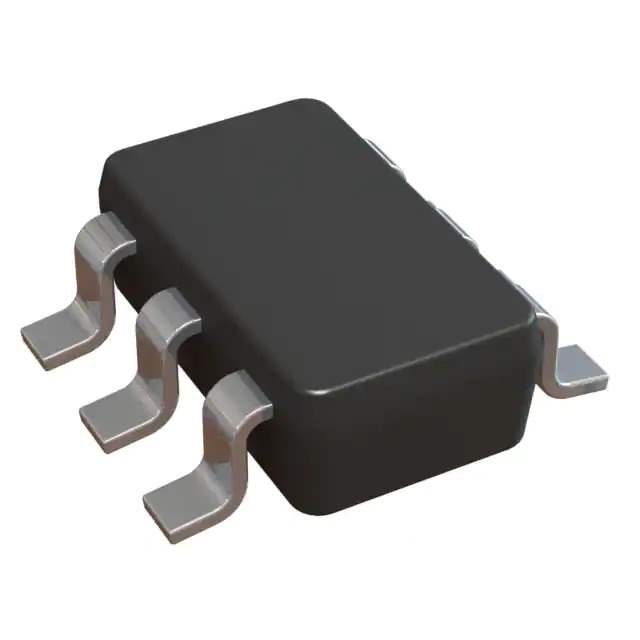

RS3236-3.3YF5 Real Image
Same model may have multiple batches, images only for reference.

RS3236-3.3YF5

Part No RS3236-3.3YF5
Manufacturer Runic Technology
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 3.3V 500MA SOT23-5 / Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Runic Technology
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 7.5V
Voltage - Output (Min/Fixed) 3.3V
Voltage Dropout (Max) 0.6V @ 500mA
Current - Output 500mA
Current - Quiescent (Iq) 40 µA
PSRR 74dB ~ 70dB (217Hz ~ 1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case SC-74A, SOT-753
Supplier Device Package SOT-23-5
Standard Package 3,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 850491-RS3236-3.3YF5
Ultra Librarian 3D Model Ultra Librarian RS3236-3.3YF5 CAD Model

Description

The Voltage Regulator is an integrated circuit designed for power management applications.

  • Manufacturer: Runic Technology
  • Current Output: 500mA
  • Output Type: Fixed
  • Voltage Input: Up to 7.5V
  • Output Voltage: 3.3V
  • Mounting: Surface Mountable
  • Package: SC-74A, SOT-753
  • Standard Package: 3,000 Pieces
  • Protection: Over Current, Over Temperature
  • Quiescent Current: 40μA
  • Status: Active
