Same model may have multiple batches, images only for reference.

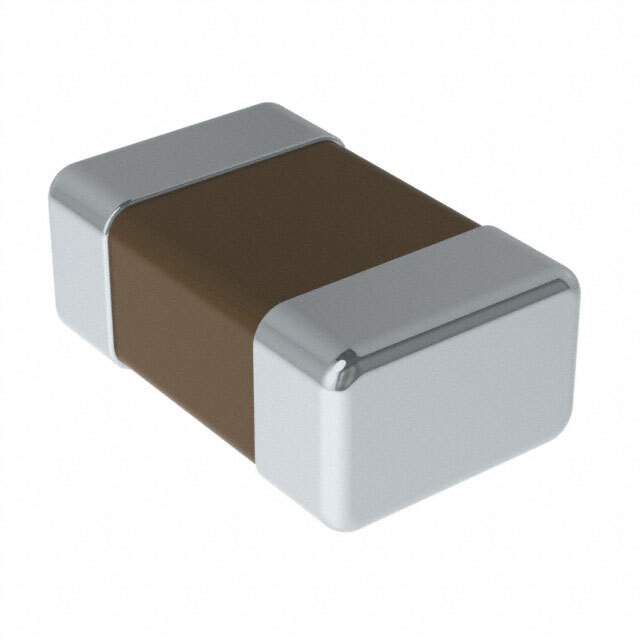

CIG21L1R2MNE Real Image
Same model may have multiple batches, images only for reference.

CIG21L1R2MNE

Part No CIG21L1R2MNE
Manufacturer Samsung
Catalog Fixed Inductors
Description FIXED IND 1.2UH 1.1A 125MOHM SMD / 1.2 µH Shielded Multilayer Inductor 1.1 A 125mOhm 0805 (2012 Metric)
Datasheet
CIG21L1R2MNE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Samsung Electro-Mechanics
Series CIG21L
Package Tape & Reel
Product Status Obsolete
Type Multilayer
Inductance 1.2 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Shielding Shielded
DC Resistance (DCR) 125mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 1276-6201-6,1276-6201-1,1276-6201-2
Standard Package 3,000
Win Source Part Number 959239-CIG21L1R2MNE
Ultra Librarian 3D Model Ultra Librarian CIG21L1R2MNE CAD Model

Description

The CIG21L is a multilayer fixed inductor designed by Samsung Electro-Mechanics for Inductors, Coils, Chokes applications.

  • Package: Shielded
  • Packaging: Tape and reel
  • Inductance: 1.2 microhenry
  • Tolerance: +/-20%
  • DC Resistance (DCR): 125mOhm
  • Current Rating (amps): 1.1A
  • Package/Case: 0805 (2012 Metric)
  • Temperature Range: -40 to 125 degrees Celsius
  • Status: Obsolete
