Same model may have multiple batches, images only for reference.

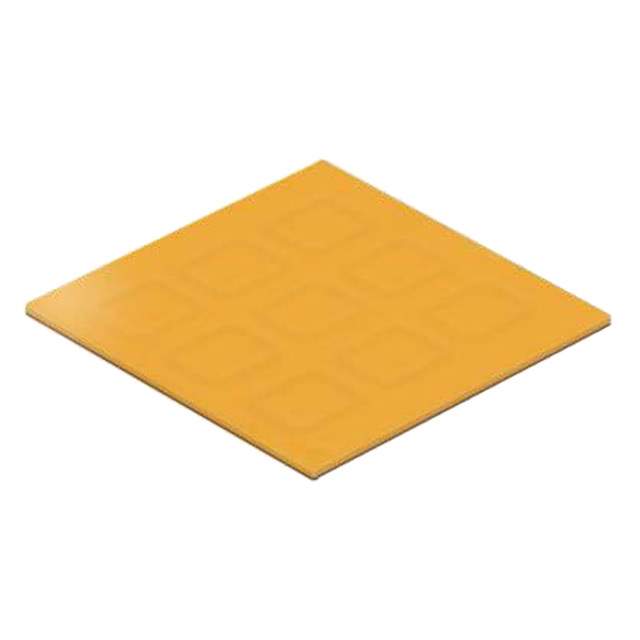

SCA7RT78HAL9RTAJEP Real Image
Same model may have multiple batches, images only for reference.

SCA7RT78HAL9RTAJEP

Part No SCA7RT78HAL9RTAJEP
Manufacturer Samsung
Catalog LED Lighting - White
Description LED LH309A COOL WHITE 5000K SMD  /  LED Lighting series White, Cool 5000K 26V 150mA 120° 2020 (5050 Metric)
Datasheet
SCA7RT78HAL9RTAJEP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Samsung Semiconductor, Inc.
Series LH309A
Package Tape & Reel
Product Status Obsolete
Color White, Cool
CCT (K) 5000K
Flux @ 85°C, Current - Test 568lm (510lm ~ 625lm)
Current - Test 150mA
Voltage - Forward (Vf) (Typ) 26V
Lumens/Watt @ Current - Test 146 lm/W
CRI (Color Rendering Index) 70
Current - Max 250mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2020 (5050 Metric)
Supplier Device Package 12-CSP
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.016" (0.40mm)
Thermal Resistance of Package 1.2°C/W
Other Names 1510-1591,1510-1591,1510-1591-6,1510-1591-2,1510-1591-1
Standard Package 1,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240154-SCA7RT78HAL9RTAJEP
Ultra Librarian 3D Model Ultra Librarian SCA7RT78HAL9RTAJEP CAD Model

Description

The LH309A series optoelectronic component from Samsung Semiconductor, Inc. is a cool white LED lighting product that is suitable for various applications.

  • Height: 0.016 inches
  • Mounting Technology: SMD (SMT)
  • Operating Current: 250mA
  • Forward Voltage: 26V
  • CCT: 5000K
  • Flux: 568lm @ 85°C
  • CRI: 70
  • Thermal Resistance: 1.2°C/W
  • Package/Case: 2020 (5050 Metric)
  • Supplier Device Package: 12-CSP
  • Dimension: 0.197 inches L x 0.197 inches W (5.00mm x 5.00mm)
  • Standard Package: 1,000
