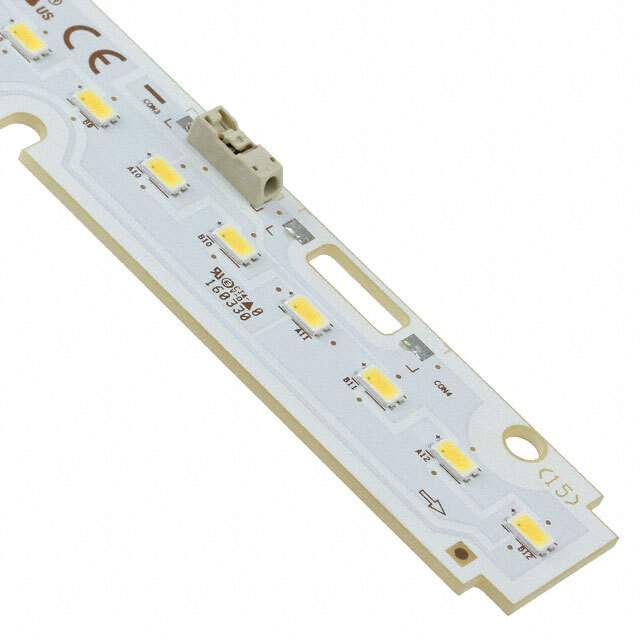

SI-B8T07128HWW Real Image
Same model may have multiple batches, images only for reference.

SI-B8T07128HWW

Part No SI-B8T07128HWW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED SLIM 4000K 1120LM FRONT WIRE / LED Lighting COBs Engines Modules LED Module series White, Neutral Linear Light Strip
Datasheet
SI-B8T07128HWW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-S282H
Package Tray
Product Status Not For New Designs
Type LED Module
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 1120lm (Typ)
Current - Test 300mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 23.4V
Lumens/Watt @ Current - Test 160 lm/W
Current - Max 540mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 279.70mm L x 23.80mm W
Height 5.80mm
Lens Type Flat
Base Product Number SI-B8
Other Names SI-B8T07128HWW,1510-1374
Standard Package 224
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240400-SI-B8T07128HWW
Ultra Librarian 3D Model Ultra Librarian SI-B8T07128HWW CAD Model

Description

The LT-S282H LED module from Samsung Semiconductor is an ideal choice for lighting applications that require high brightness and efficiency.

  • Type: Linear light strip module
  • Viewing Angle: 115 degrees
  • CCT: 4000K 3-Step MacAdam Ellipse
  • Maximum Current: 540mA
  • Forward Voltage: 23.4V
  • Lumens per Watt: 160 lm/W @ a test current of 300mA
  • Connector: Yes
  • Package: Tray
  • Dimensions: 279.70mm L x 23.80mm W
  • Height: 5.80mm
  • CRI: 80
  • Temperature: 50 degrees Celsius during testing
