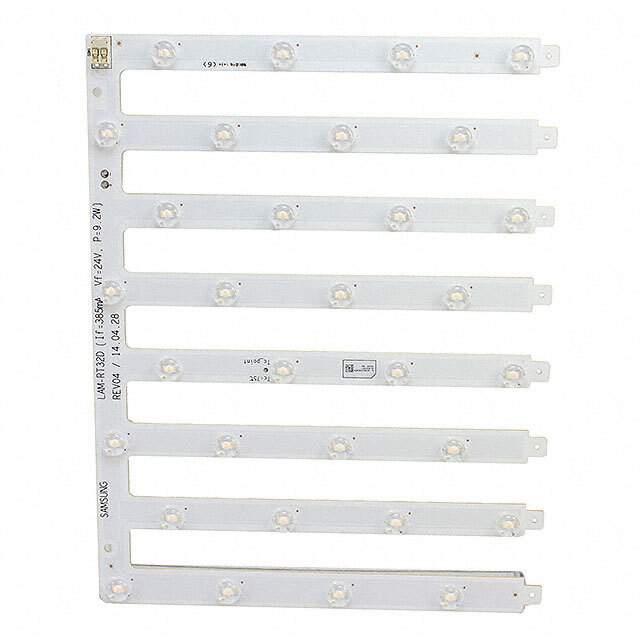

SI-B8V095280WW Real Image
Same model may have multiple batches, images only for reference.

SI-B8V095280WW

Part No SI-B8V095280WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED 3000K 80CRI LM561B  /  LED Lighting COBs Engines Modules LED Module series White, Warm Rectangle
Datasheet
SI-B8V095280WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LAM-RT32B
Package Box
Product Status Obsolete
Type LED Module
Color White, Warm
CCT (K) 3000K
Configuration Rectangle
Luminous Flux @ Current/Temperature 1130lm (1010lm ~ 1260lm)
Current - Test 385mA
Temperature - Test 35°C
Voltage - Forward (Vf) (Typ) 24V
Lumens/Watt @ Current - Test 123 lm/W
CRI (Color Rendering Index) 80
Viewing Angle 145°
Features With Connector
Dimension 273.00mm L x 216.00mm W
Height 5.60mm
Lens Type Domed
Other Names 1510-1136
Standard Package 60
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241157-SI-B8V095280WW
Ultra Librarian 3D Model Ultra Librarian SI-B8V095280WW CAD Model

Description

The Samsung Semiconductor LAM-RT32B is a white and warm color LED module with a rectangle configuration.

  • Viewing Angle: 145°
  • CCT: 3000K
  • CRI: 80
  • Luminous Flux: 1130lm (1010lm ~ 1260lm) @ a current of 385mA and temperature of 35°C
  • Connector Type: Connector
  • Height: 5.60mm
  • Dimension: 273.00mm L x 216.00mm W
