Same model may have multiple batches, images only for reference.

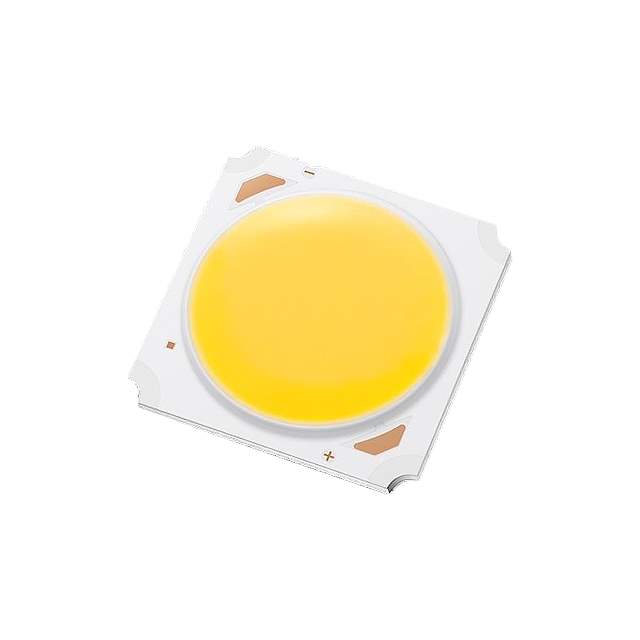

SPHWW1HDNE28YHU23M Real Image
Same model may have multiple batches, images only for reference.

SPHWW1HDNE28YHU23M

Part No SPHWW1HDNE28YHU23M
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB WHT 3500K 2STEP 95CRI / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LC040B
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3500K 2-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 4005lm (Typ)
Current - Test 1.08A
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 35.5V
Lumens/Watt @ Current - Test 104 lm/W
Current - Max 1.9A
CRI (Color Rendering Index) 95
Viewing Angle 115°
Dimension 21.50mm L x 21.50mm W
Height 1.50mm
Light Emitting Surface (LES) 17.00mm Dia
Lens Type Flat
Base Product Number SPHWW1
Standard Package 320
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240590-SPHWW1HDNE28YHU23M
Ultra Librarian 3D Model Ultra Librarian SPHWW1HDNE28YHU23M CAD Model

Description

The SPHWW1HDNE28YHU23M is a white and warm chip on board (COB) LED module that is part of the LC040B series.

  • Configuration: Square
  • Viewing Angle: 115°
  • Light Emitting Surface (LES): 17.00mm diameter
  • Maximum Forward Voltage: 35.5V
  • Maximum Current: 1.9A
  • Color Rendering Index (CRI): 95
  • Correlated Color Temperature (CCT): 3500K 2-Step MacAdam Ellipse
  • Typical Luminous Flux: 4005lm
  • Operating Temperature Range: -40°C to 85°C
