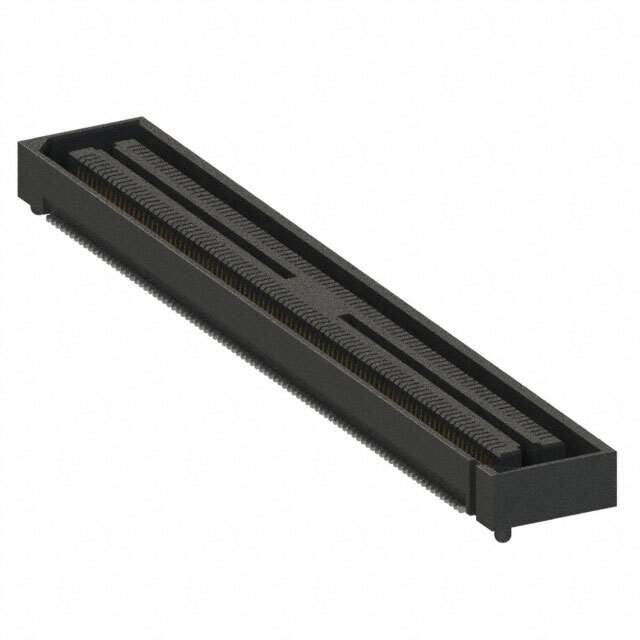

BSH-090-01-L-D-A

Name: BSH-090-01-L-D-A
Brand: Samtec Inc.
SKU: 1049673
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BSH-090-01-L-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN SOCKET 180POS SMD GOLD / 180 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Datasheet	BSH-090-01-L-D-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	BSH
Package	Tray
Connector Type	Socket, Center Strip Contacts
Number of Positions	180
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	5mm
Height Above Board	0.128" (3.25mm)
Base Product Number	BSH-090
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM9186
Standard Package	60
Win Source Part Number	1049673-BSH-090-01-L-D-A
Ultra Librarian 3D Model	Ultra Librarian BSH-090-01-L-D-A CAD Model

Alternative Products

Description

The BSH series by Samtec Inc. presents the BSH-090-01-L-D-A socket connector, which is an array connector with two rows of center strip contacts.

Contacts: 180 positions loaded with gold-finished contacts (10.0µin thickness)
Pitch: 0.50mm
Height above the board: 3.25mm
Current Rating: Not specified
Mounting: SMD (SMT)
Package: Tray
Mating Stacking Heights: 5mm
Temperature Range: -55°C to 125°C
Application: Board-to-board
