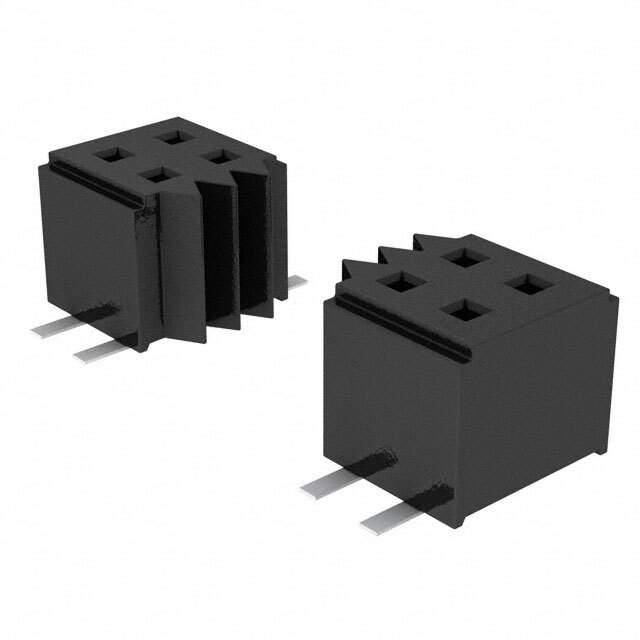

CLM-118-02-F-D Real Image
Same model may have multiple batches, images only for reference.

CLM-118-02-F-D

Part No CLM-118-02-F-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 36POS 0.039 GOLD SMD / 36 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
Datasheet
CLM-118-02-F-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series CLM
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 36
Number of Positions Loaded All
Pitch - Mating 0.039" (1.00mm)
Number of Rows 2
Row Spacing - Mating 0.039" (1.00mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insulation Color Black
Insulation Height 0.084" (2.14mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2.8A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number CLM-118
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 31
Win Source Part Number 1160270-CLM-118-02-F-D
Ultra Librarian 3D Model Ultra Librarian CLM-118-02-F-D CAD Model

Description

The CLM series female socket connector is a rectangular connector header for board to board interconnects.

  • Designed to: Provide a reliable and secure connection for electronic components
  • Positions: 36
  • Rows: Two
  • Pitch: 1.00mm
  • Contact Material: Phosphor bronze
  • Contact Finish: Gold with a thickness of 3.00µin
  • Current Rating: 2.8A per contact
  • Operating Temperature: -55°C to 125°C
  • Mounting: SMD (SMT) mounted
  • Fastening Type: Push-pull
  • Insulation Material: Liquid crystal polymer (LCP)
  • Insulation Height: 2.14mm
  • Color: Black
  • Material Flammability Rating: UL94 V-0
  • Package: Tube
  • Standard Package: 31
