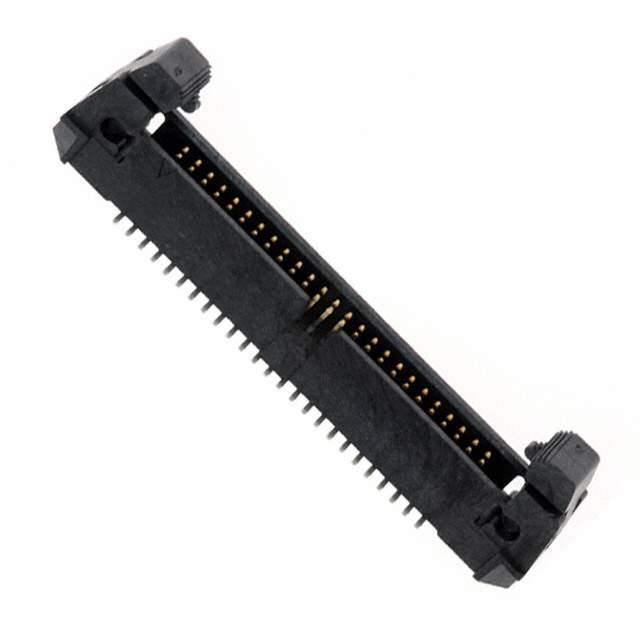

EHF-125-01-L-D-SM Real Image
Same model may have multiple batches, images only for reference.

EHF-125-01-L-D-SM

Part No EHF-125-01-L-D-SM
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 50POS 1.27MM / Connector Header Surface Mount 50 position 0.050" (1.27mm)
Datasheet
EHF-125-01-L-D-SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series EHF
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 50
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.325" (8.25mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Current Rating (Amps) 1.75A
Base Product Number EHF-125
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names EHF12501LDSM,SAM8216
Standard Package 12
Win Source Part Number 1036073-EHF-125-01-L-D-SM
Ultra Librarian 3D Model Ultra Librarian EHF-125-01-L-D-SM CAD Model

Description

The Samtec Inc. EHF-125 is a 50-position header connector that is used in various electronic devices.

  • Features: It has a keying slot and is available with the Win Source Part Number 1036073-EHF-125-01-L-D-SM.
  • Pitch: The component has a pitch-mating of 0.050 inches and a contact finish-mating of gold.
  • Current Rating: It has a current rating of 1.75A and is available in an SMD (SMT) package.
  • Fastening: The connector has a latch lock/eject hooks fastening type and is made of phosphor bronze contact material.
  • Temperature Range: It has a temperature range of -55 degrees Celsius to 125 degrees Celsius and is insulated with liquid crystal polymer (LCP), glass-filled material.
