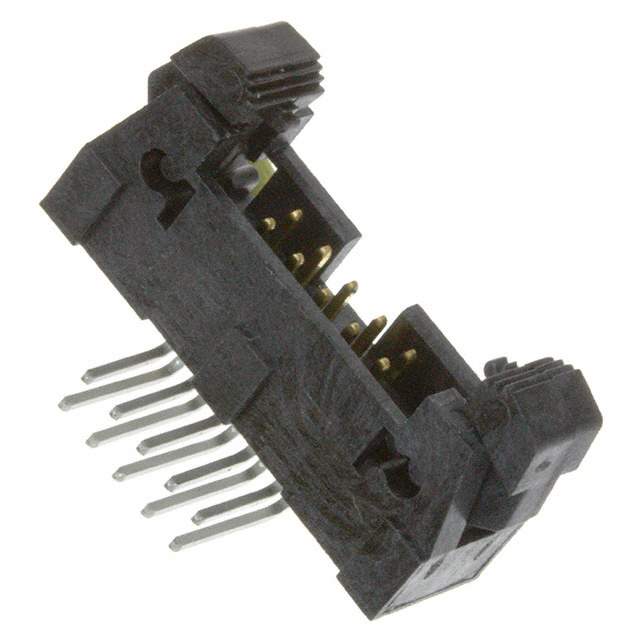

EHT-105-01-S-D-RA Real Image
Same model may have multiple batches, images only for reference.

EHT-105-01-S-D-RA

Part No EHT-105-01-S-D-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER 2MM 10POS R/A GOLD / Conn Ejector Header HDR 10 POS 2mm Solder RA Thru-Hole Tube
Datasheet
EHT-105-01-S-D-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series EHT
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.300" (7.62mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3A
Win Source Part Number 773703-EHT-105-01-S-D-RA
Popularity Medium
Supply and Demand Status Limited
Family Name EHT
Introduction Date March 22, 2001
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian EHT-105-01-S-D-RA CAD Model

Description

The EHT series header connector from Samtec Inc. is a reliable and durable solution for board to cable/wire connections.

  • Positions: 10
  • Rows: 2
  • Positions Loaded: All
  • Keying Slot: Yes
  • Fastening Type: Latch Lock/Eject Hooks
  • Contact Material: Phosphor Bronze
  • Voltage Rating: -
  • Current Rating: 3A
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Pitch-Mating: 0.079" (2.00mm)
  • Shrouding: 4-Wall
  • Contact Finish-Mating: Gold (30μin (0.76μm) thick)
  • Contact Finish-Post: Tin
  • Mounting: Through-Hole, Right-Angle
  • Insulation Color: Black
  • Temperature Range: -55°C to 125°C
  • Halogen Free: Yes
  • Popularity: Popular
  • Supply and Demand Status: Limited
