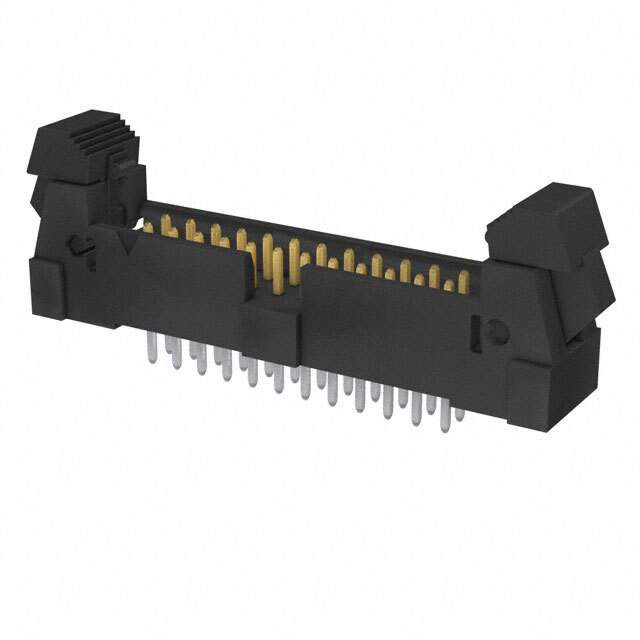

EHT-112-01-S-D Real Image
Same model may have multiple batches, images only for reference.

EHT-112-01-S-D

Part No EHT-112-01-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 24POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Samtec Inc.
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 24
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.114" (2.90mm)
Insulation Height 0.370" (9.40mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0μin (0.76μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Manufacturer Pack Quantity 14
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 814000-EHT-112-01-S-D
Ultra Librarian 3D Model Ultra Librarian EHT-112-01-S-D CAD Model

Description

The EHT-112-01-S-D is a header connector manufactured by Samtec Inc.

  • Win Source Part Number: 814000-EHT-112-01-S-D
  • Positions Loaded: 24
  • Mounting Style: Through Hole
  • Keying Slot: Yes
  • Contact Type: Male Pin
  • Shrouding: Shrouded - 4 Wall
  • Pitch-Mating: 0.079" (2.00mm)
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness-Mating: 30.0μin (0.76μm)
  • Termination: Solder
  • Fastening Type: Latch Lock/Eject Hooks
  • Contact Material: Phosphor Bronze
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Row Spacing-Mating: 0.079" (2.00mm)
  • Contact Length-Post: 0.114" (2.90mm)
  • Insulation Height: 0.370" (9.40mm)
  • Contact Shape: Square
  • Operating Temperature Range: -55°C ~ 125°C
  • Contact Length-Mating: 0.120" (3.05mm)
  • Popularity: Low
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 14
  • MSL Level: 1
  • Current Rating (amps): 3A
