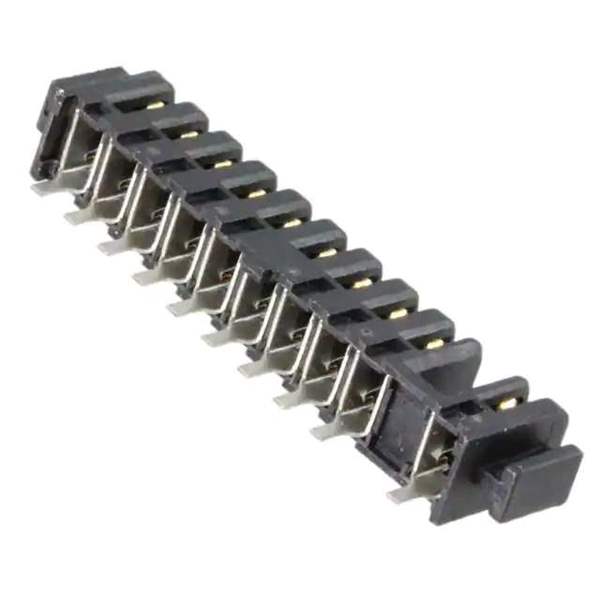

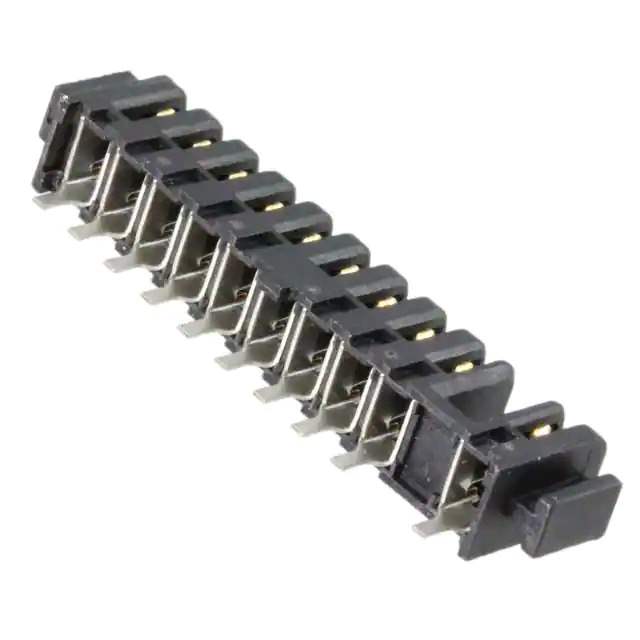

1-1674231-1 Real Image
Same model may have multiple batches, images only for reference.

1-1674231-1

Part No 1-1674231-1
Manufacturer TE Connectivity
Catalog Blade Type Power Connectors
Description CONN RCPT 10POS 2.5MM SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Blade Type Power Connectors - Blade Type Power Connector Assemblies
Mfr TE Connectivity
Package Tray
Product Status Active
Connector Style Battery
Connector Type Receptacle, Female Blade Sockets
Number of Positions 10
Pitch 0.098" (2.50mm)
Mounting Type Through Hole
Number of Rows 1
Termination Solder
Features Keyed
Color Black
Fastening Type Push-Pull
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 11.8µin (0.30µm)
Voltage Rating 30 V
Material - Insulation Polyamide (PA6T), Nylon 6T
Base Product Number 1674231
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 847918-1-1674231-1
Ultra Librarian 3D Model Ultra Librarian 1-1674231-1 CAD Model

Description

The 847918-1-1674231-1 is a 10-position blade type power connector assembly from TE Connectivity.

  • Fastening Type: Push-pull.
  • Connector Gender: Receptacle.
  • Contact Type: Female blade sockets.
  • Pitch: 0.098" (2.50mm).
  • Color: Black.
  • Contact Finish: Gold.
  • Contact Material: Copper alloy.
  • Insulation Material: Polyamide (PA6T).
  • Voltage Rating: 30V.
  • Mounting: Through-hole mounted.
