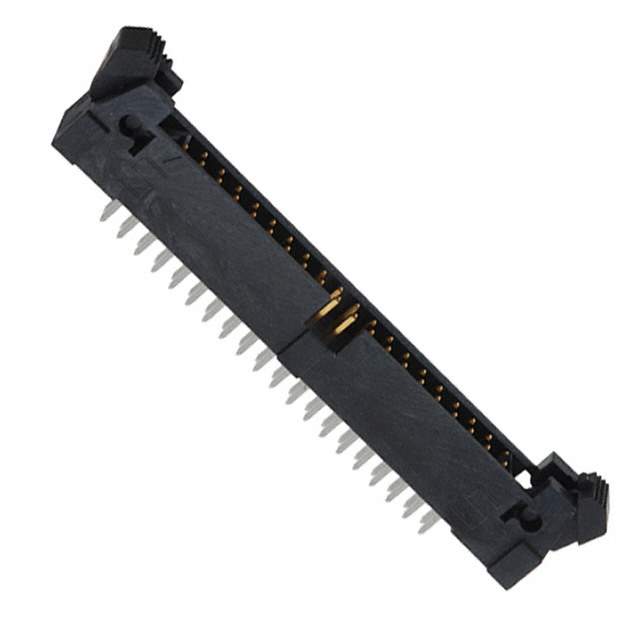

EHT-120-01-S-D Real Image
Same model may have multiple batches, images only for reference.

EHT-120-01-S-D

Part No EHT-120-01-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 40POS 2MM
Datasheet
EHT-120-01-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 8 Weeks
Features Connector Header Through Hole 40 position 0.079" (2.00mm)
Manufacturer Samtec Inc.
Series EHT
Package Tube
Operating Temperature Range -55°C ~ 125°C
Mounting Through Hole
Family Name EHT-120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number EHT12001SD, SAM8560
Quantity per package 10
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 870277-EHT-120-01-S-D
Ultra Librarian 3D Model Ultra Librarian EHT-120-01-S-D CAD Model

Description

The Samtec Inc. EHT-120-01-S-D connector header is a high-quality component that is designed to meet the needs of a wide range of electronic applications.

  • Package Type: Tube
  • Series: EHT
  • Operating Temperature Range: -55°C to 125°C
  • Description: Connector Header Through Hole 40 Position 0.079" (2.00mm)
  • Mounting: Through Hole
  • Category: Connectors
  • Supply and Demand Status: Limited
  • Pieces Per Package: 10
  • Estimated Production Lead Time: 8 weeks
  • MSL Level: 1 (unlimited)
  • REACH: REACH unaffected
  • HTSUS: 8536.69.4040
  • Other Part Numbers: EHT12001SD, SAM8560
