ERF8-060-05.0-L-DV-TR Samtec Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

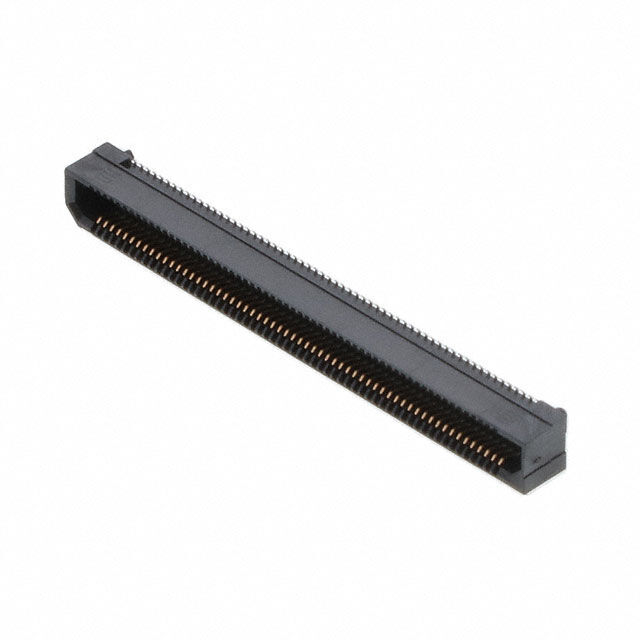

ERF8-060-05.0-L-DV-TR

Part No ERF8-060-05.0-L-DV-TR
Manufacturer Samtec Inc.
Catalog Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Description CONN SOCKET 120POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsRectangular ConnectorsArrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Samtec Inc.
Series Edge Rate? ERF8
Packaging Tape & Reel (TR)Cut Tape (CT)
Part Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 120
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 10.0μin (0.25μm)
Mated Stacking Heights 7mm, 10mm, 13mm, 14mm, 20mm
Height Above Board 0.210" (5.33mm)
Base Product Number ERF8-060
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Contact Finish Thickness 10.0µin (0.25µm)
Height Above Board 0.210\
Ultra Librarian 3D Model Ultra Librarian ERF8-060-05.0-L-DV-TR CAD Model
