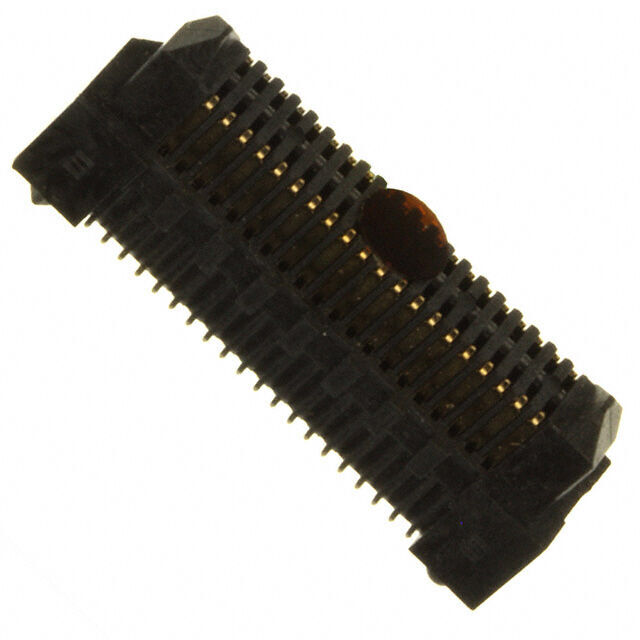

ERM8-020-05.0-S-DV-K-TR Samtec Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ERM8-020-05.0-S-DV-K-TR

Part No ERM8-020-05.0-S-DV-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Description CONN HDR 40POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsRectangular ConnectorsArrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Samtec Inc.
Series Edge Rate? ERM8
Part Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 40
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 30.0μin (0.76μm)
Mated Stacking Heights 10mm, 12mm, 15mm
Height Above Board 0.351" (8.91mm)
Base Product Number ERM8-020
Ultra Librarian 3D Model Ultra Librarian ERM8-020-05.0-S-DV-K-TR CAD Model
